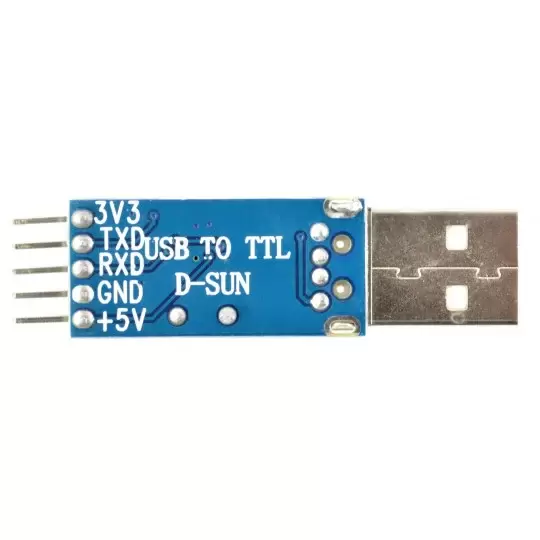

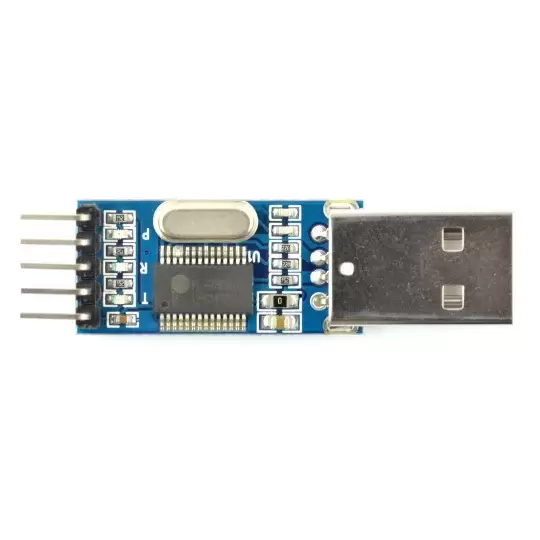

PL2303 USB TTL Converter Module

Electra Store SKU: MD-22564

55.00 EGP

In Stock

Quantity

Share to

Overview

The PL2303 USB to TTL Converter Module is a high-performance USB-to-serial adapter designed for debugging, programming, and communication between computers and microcontrollers or embedded systems. It is widely used for Arduino, Raspberry Pi, ESP8266, STM32, and other microcontroller projects.

Description

✅ Key Features:

Based on the Prolific PL2303 chipset for excellent compatibility
Converts USB signals to TTL serial (UART) levels
Supports 3.3V and 5V logic levels (jumper/switch selectable on some versions)
Compact design with standard 4-pin header (VCC, GND, TXD, RXD)
Plug-and-play with most operating systems (Windows, Linux, macOS)
Supports baud rates up to 1Mbps

📦 Specifications:

Chipset: Prolific PL2303
Input (USB): USB 2.0 (compatible with USB 1.1 & 3.0)
Output (TTL): TXD, RXD, VCC, GND pins
Logic Voltage: 3.3V or 5V (depending on version)
Operating System Support: Windows XP/Vista/7/8/10, Linux, Mac OS
Baud Rate: 75bps to 1Mbps
Dimensions: Approx. 45mm x 15mm

🔌 Applications:

Programming Arduino, ESP8266, ESP32, and other microcontrollers
Debugging and serial communication for embedded systems
Connecting GPS modules, GSM modules, and other serial devices to PC
DIY electronics and prototyping

💡 Why Choose PL2303 USB-TTL Module?
It’s an affordable, easy-to-use, and reliable adapter for anyone needing serial communication between a computer and electronic devices. Perfect for programming and debugging in your next project.
