DC-DC Step Down Converter 8A

Electra Store SKU: MD-28175

150.00 EGP

Out of Stock

Share to

Overview

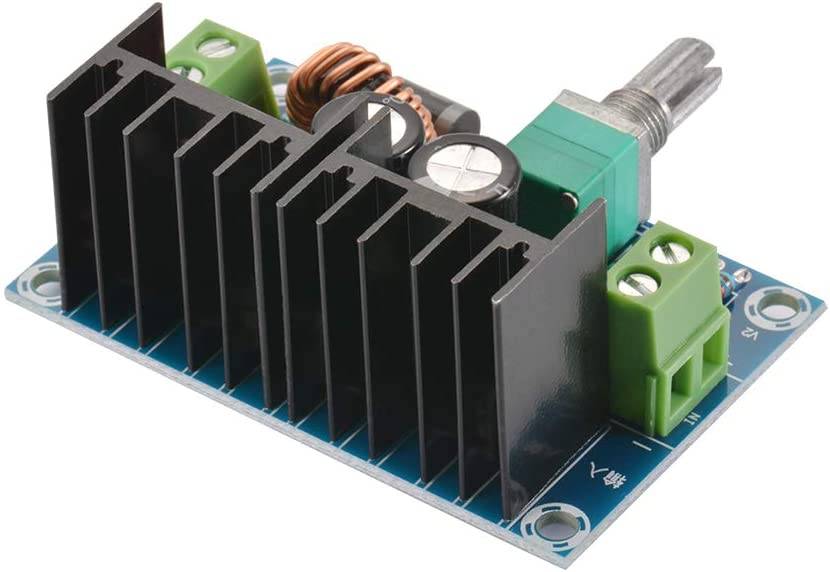

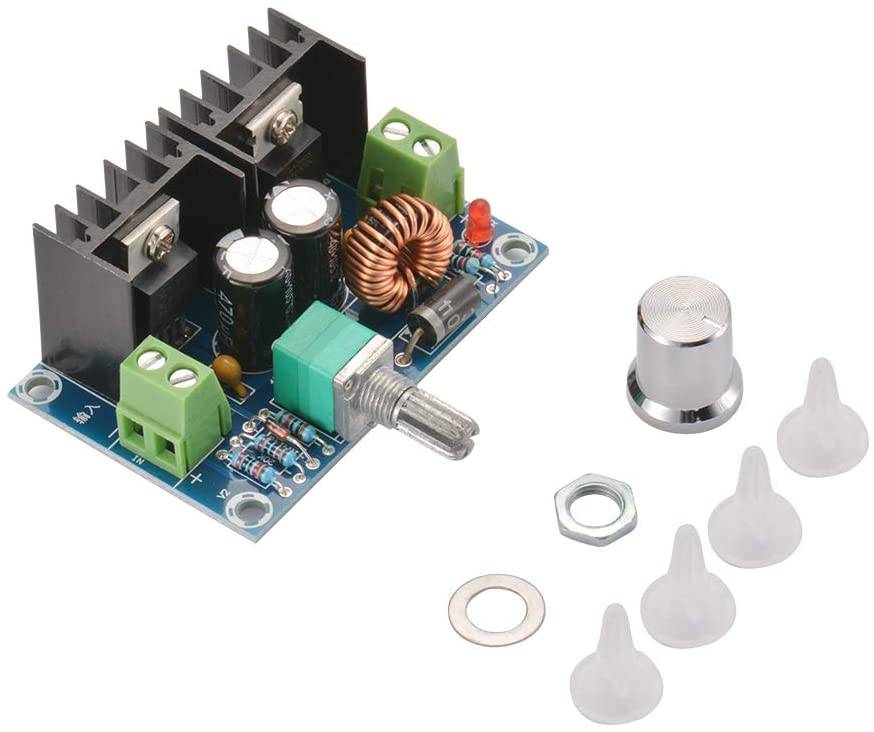

Max 8A 200W DC-DC Step Down Buck Converter Power Supply XL4016 PWM Adjustable 4-40V To 1.25-36V Step-Down Board Module Voltage regulator potentiometer counter-clockwise rotation voltage decreases, if the rotation of the copper column voltage has not changed, you can rotate 5-10 laps.

Description

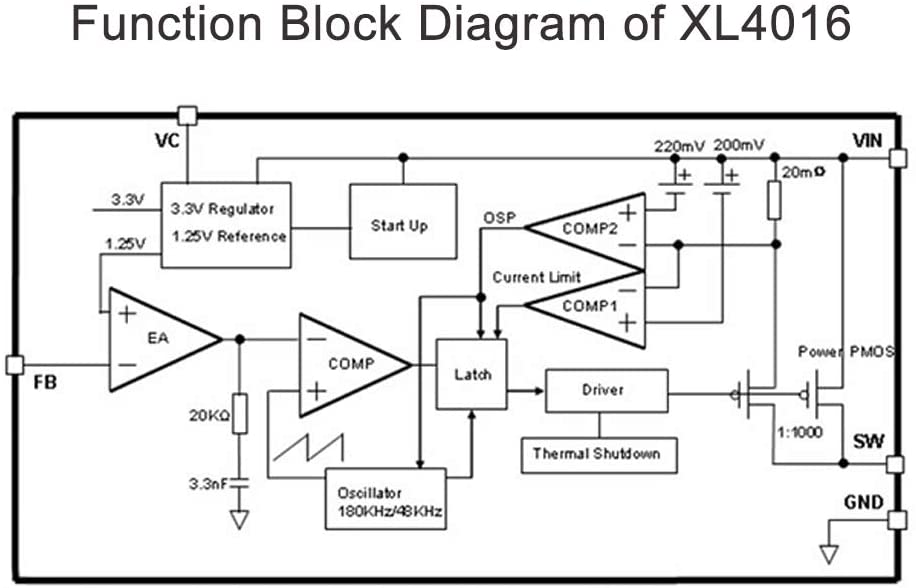

The XL4016 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 8A load with high efficiency, low ripple, and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An over-current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.

Applications:

LCD Monitor and LCD TV
Portable instrument power supply
Telecom / Networking Equipment

Features:

Wide 4V to 40V Input Voltage Range.
Output Adjustable from 1.25V to 36V.
High efficiency up to 96%.
Built-in thermal shutdown function.
Built-in current limit function.
Built-in output short protection function.
Excellent line and load regulation.

Note: Switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection, Short circuit protection. When reaching maximum output current 8A, need to add fan. Long term work recommended about 5A
