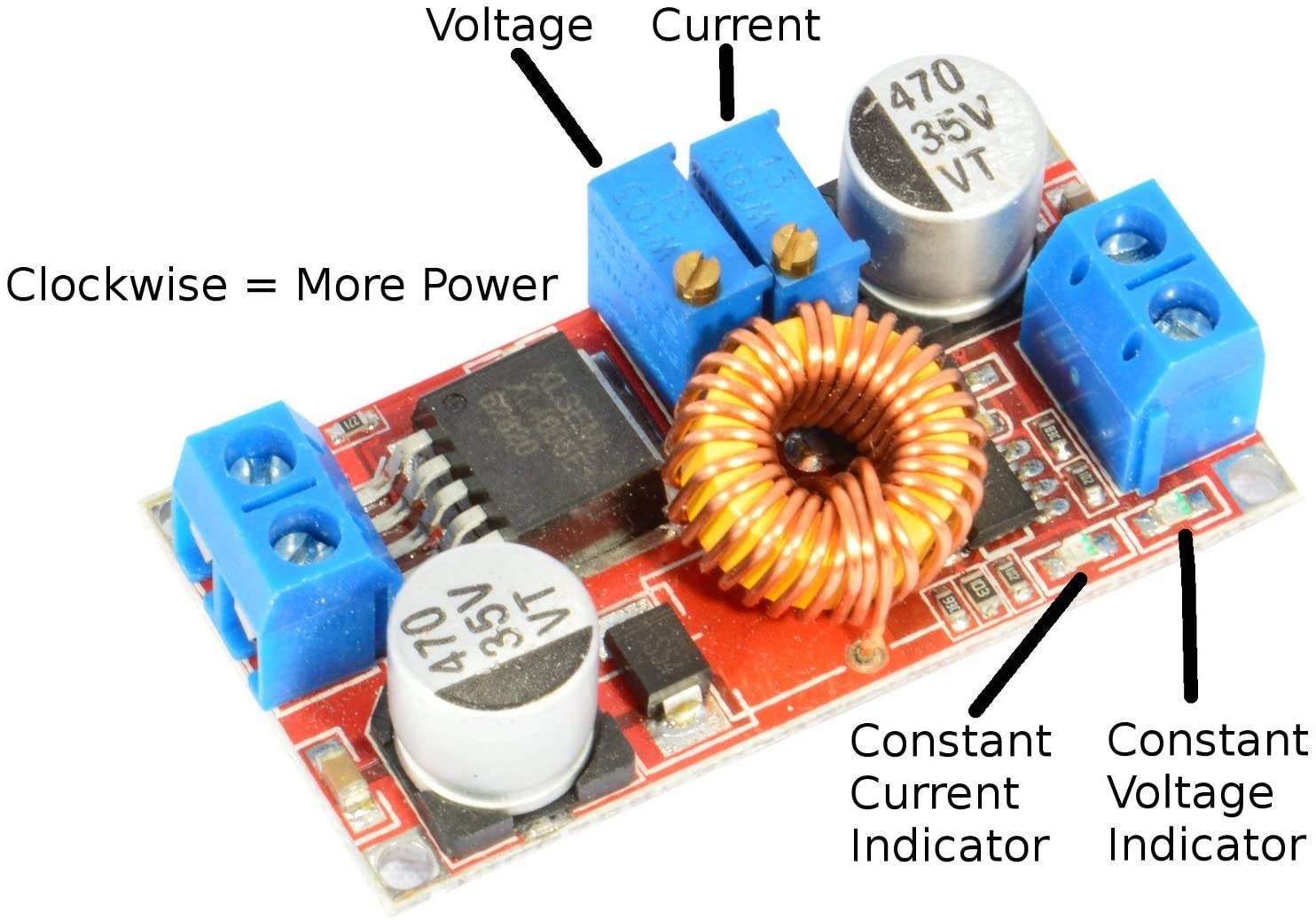

XL4015 5A DC Buck Step Down Voltage Converter

Electra Store SKU: MD-28173

90.00 EGP

Out of Stock

Share to

Overview

This module combines the high efficiency XMLSEMI XL4015 DC-DC buck converter IC with a TI LM358 Op-Amp for stable current regulation. This module offers much higher efficiency than LM2596 based modules which means less heat and more available power for your device.

Description

XL4015 5A CC/CV Adjustable Step Down DC-DC Buck Converter Module is a linear module that has constant voltage and constant current function (CC CV) and it has a good performance.
When you use it as a charger. this module use good chip as core and it is stable. also its ripple is low to 50mV.
This product is a 300 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 0-5A (Max) Adjustable load with high efficiency, low ripple and excellent line and load regulation.
Use as a step-down modules with over current protection capabilities.
The DC/DC buck module has Applications where the input voltage is higher than the output voltage , such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV portable instrument power supply telecom/networking equipment,24V vehicle power supply, industrial equipment buck.
This module has adjustable output Voltage and Current.
Can also be used as a dedicated charger for Lithium Batteries (Li-Ion,LiPo) as it is capable of CC CV.
When the module charges a battery, it first use constant current to protect the battery.
Built in current limit function
Built in output short protection function
