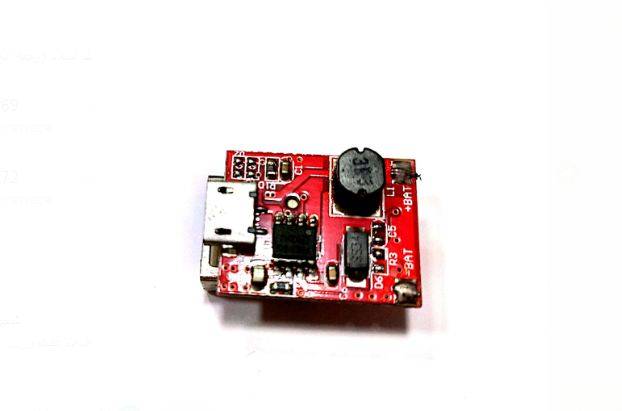

USB DC-DC Converter Step Down Module 5V 3A

Electra Store SKU: MD-28279

90.00 EGP

Out of Stock

Share to

Overview

The input voltage of this converter module 6V to 24V, output voltage 4.8-5.2V and 3A peak current output . This module uses low ESR filter capacitor voltage as low as possible so that the ripple 30mV, fully capable and linear power comparable. The USB output converter module has short circuit protection, 5A current automatic protection.

Description

Input voltage: DC 6-24V
Output voltage: 4.8-5.2V
Output current: 3A MAX
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
Switch frequency: 500KHz
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
Output indicator: Output voltage indicator is red
Operating temperature: Industrial grade (-40 Celsius to 85 Celsuis) (the higher the ambient temperature, the lower the output power)
Output over voltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
Full load temperature: 30 Celsius
Static current: 0.85 mA
Load regulation: ± 1%
Voltage Regulation: ± 0.5%
Dynamic response speed: 5% 200uS
