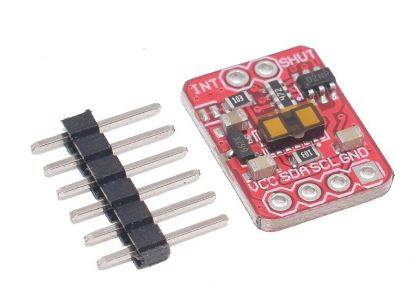

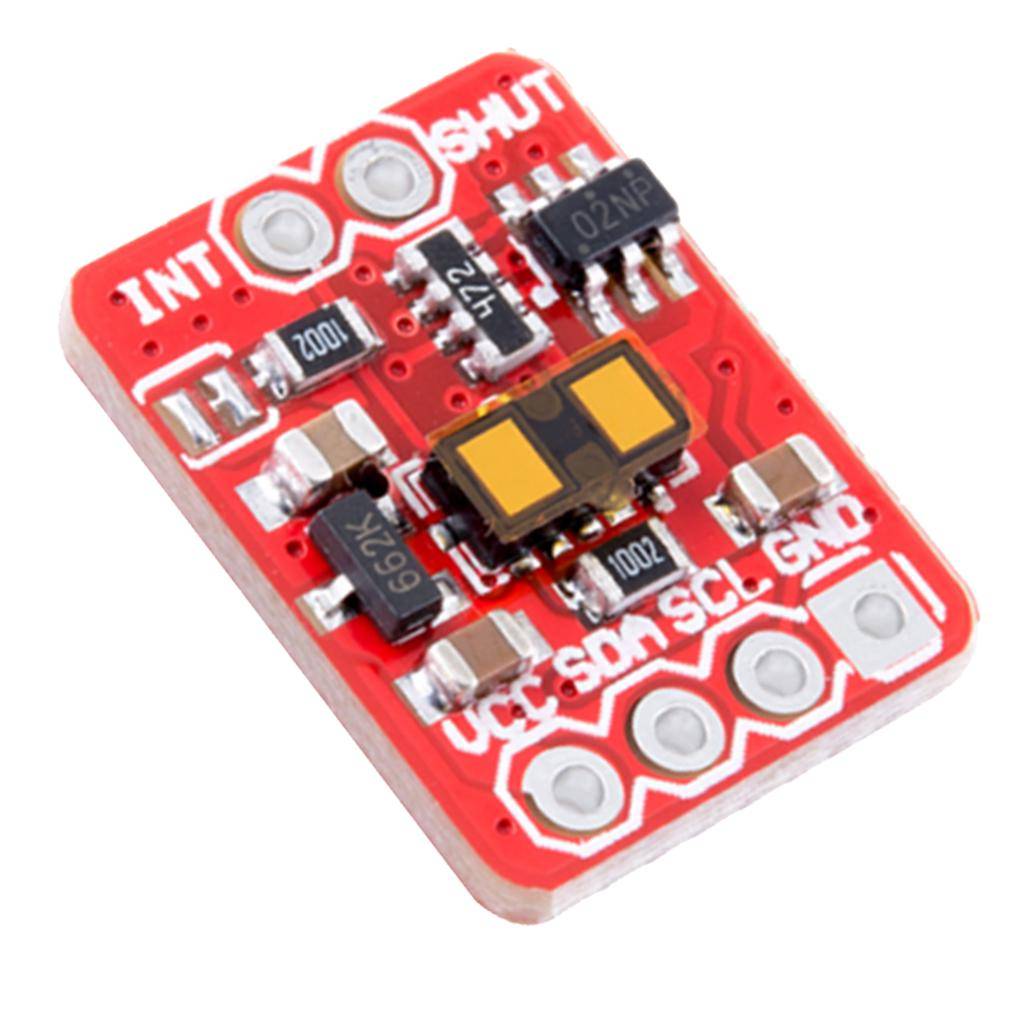

VL53L1X Time of Flight Sensor

275.00 EGP 275.00 EGP Save 0%

Out of Stock

Share to

The I2C address of the VL53L1X is 0x29 and is hardware defined.

Description

This SparkFun Distance Sensor Breakout utilizes the VL53L1X next generation ToF (Time of Flight) sensor module to give you the highly accurate measurements at long ranges for its size.
The VL53L1X uses a VCSEL (Vertical Cavity Surface Emitting Laser) to emit an Infrared laser to time the reflection to the target.
That means that you will be able to measure the distance to and object from 40mm to 4m away with millimeter resolution.
Each VL53L1X sensor features a precision to be 1mm with an accuracy around /-5mm and a minimum read distance of this sensor is 4cm.
The field of view for this little breakout is fairly narrow at 15°-27° with a read rate of up to 50Hz.
SPAD (single photon avalanche diode) receiving array with integrated lens.
Low-power microcontrollers run advanced digital firmware.
Pin compatible with VL53L0X FlightSense Ranging Sensor.
Fast and accurate long distance measurement.
Receive programmable ROI locations on the array to provide multi-zone operational control of the host.
I2C interface (up to 400 kHz), shutdown and interrupt pins.
Note: A multiplexer/Mux is required to communicate to multiple VL53L1X sensors on a single bus.
