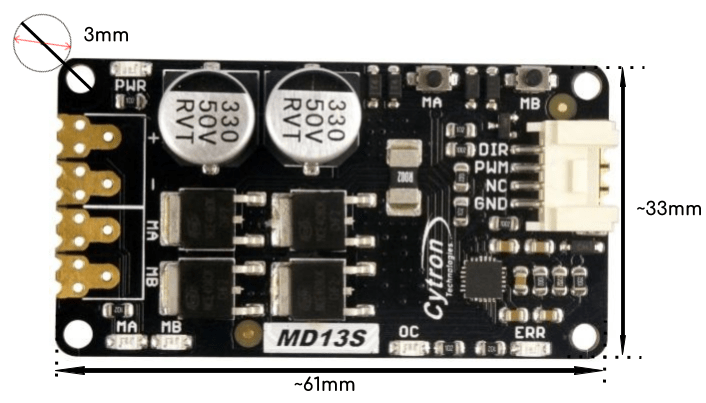

Cytron 13Amp 6V-30V DC Motor Driver
Electra Store
SKU: MD-27634
540.00 EGP
Out of Stock
Categories: Motor Drivers
Overview
Cytron 13Amp
Description
Cytron 13Amp
| Compatible input | 3.3 and 5V |
| Motor Channel | 1 |
| Operating Voltage (VDC) | 6 to 30 |
| Peak Current (A) | 30 (10 seconds) |
| Continuous Current (A) | 13 |
| Specification | |
| Arduino Shield | No- can be used with Wire connection |
| PWM (Lock-Antiphase and Sign-Magnitude) | Yes |
| UART | No |
| Analog | No |
| RC Servo Signal | No |
| Special Protection | |
| Polarity Protection | NO |
| Appearance | |
| LEDs Indicator | Yes |
| Test/Manual Button | Yes |
| Cooling Fan | No |
| Other Features | |
| Extra Socket | Groove Compatible |
| others | No heat sink is required |
-
Bi-directional control for 1 brushed DC motor
-
Support motor voltage from 6V to 30VDC
-
Maximum current up to 13A continuous and 30A peak (10 seconds)
-
3.3V and 5V logic level input.
-
Solid state components provide faster response time and eliminate the wear and tear of mechanical relay
-
Fully NMOS H-Bridge for better efficiency and no heat sink is required
-
Regenerative Braking
-
Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency)
-
Support both locked-antiphase and sign-magnitude PWM operation, *NOT RC (Radio Control) PWM
- SMD compatible
- RoHS, FCC and CE compliance
- Dimension: 61mm x 33mm
Cytron 13Amp
