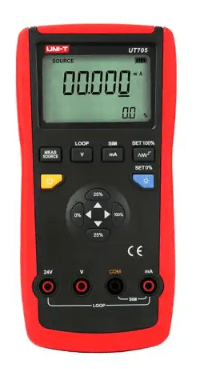

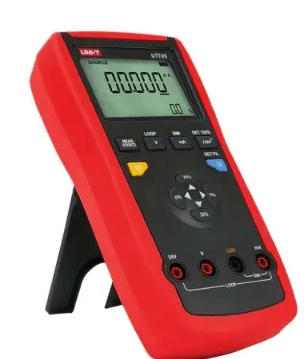

UT705 Single Function Loop Calibrator

Electra Store SKU: UT-705

12,850.00 EGP

On Backorder

Available for order — ships when in stock

Quantity

Share to

Categories: UNI-T

Overview

UT705 Single Function Loop Calibrator UT705 is a high performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately. It features LCD backlight, auto power off and 1m drop proof.

Description

Specifications of UT705 Single Function Loop Calibrator

Specifications	Range	UT705
Measure accuracy
DC voltage (V)	30.000V	±(0.02 2)
DC current (A)	24.000mA	±(0.02 2)
Loop current	24.000mA	±(0.02 2)
Source accuracy
DC current (source)	24.000mA	±(0.02 2)
DC current (simulate)	24.000mA	±(0.02 2)
Features
Loop power function	Voltage: 24V
	Accuracy: 10%
Ramp functions	Source functions: Voltage, resistance, temperature
	Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions	Source functions: Voltage, resistance, temperature
	Steps: 25% of range, 100% of range
General Characteristics
Power	9V battery (6F22)
Display	63mm x 40mm
Product color	Red and grey
Product net weight	410g
Product size	96mm x 193mm x 47mm
