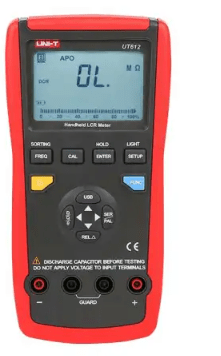

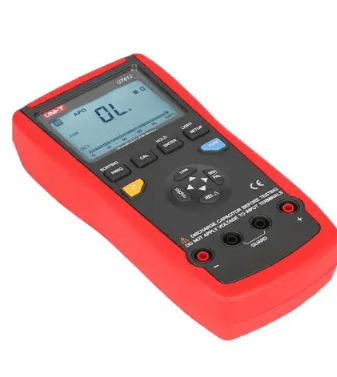

UT612 LCR Meter

Electra Store SKU: UT612

5,500.00 EGP

On Backorder

Available for order — ships when in stock

Quantity

Share to

Categories: UNI-T

Overview

UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode. UT612 can be used in production lines, component inspection and electronic maintenance.

Description

Specifications of UT612 LCR Meter

Specifications	Range	UT612
Inductance (H)	20uH~2000H	±(0.5% 5)
Capacitance (F)	200pF~20mF	±(0.5% 5)
Resistance (Ω)	20Ω~200MΩ	±(0.3% 5)
Test frequency (Hz)	100Hz/120Hz/1kHz/10kHz/100kHz	√
Operating voltage	0.6Vrms	√
Test parameters	L/C/R/DCR/Q/D/θ/ESR	√
Features
Display count		20000
D/Q display count		2000
D/Q resolution	0.001	√
Auto range		√
Test frequency real-time display		√
Measurement mode	Series/Parallel	√
Auto power off		√
Low battery indication	≤6.8V	√
Data hold		√
Relative mode		√
USB interface		√
USB interface/PC data records		60000
LCD backlight		√
Analog bar graph		26
Deviation ratio measurement		√
Comparison function		√
Calibration function		√
Output impedance	120Ω	√
Auto LCR check and measurement		√
General Characteristics
Power	9V battery (6F22) or USB
Display	40mm x 63mm
Product color	Red and grey
Product net weight	374g
Product size	96mm x 193mm x 47mm
