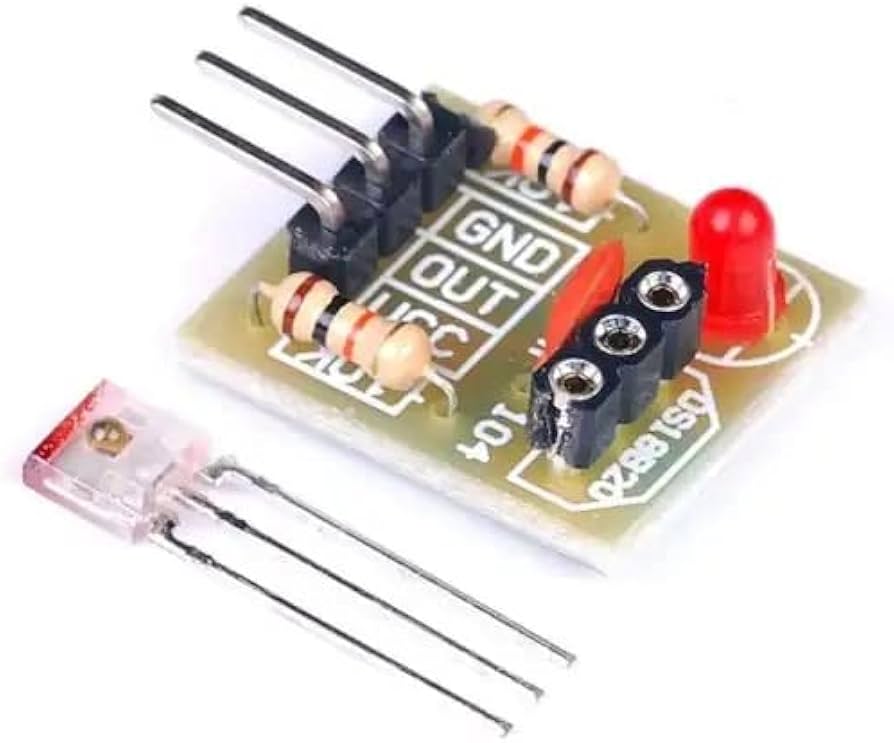

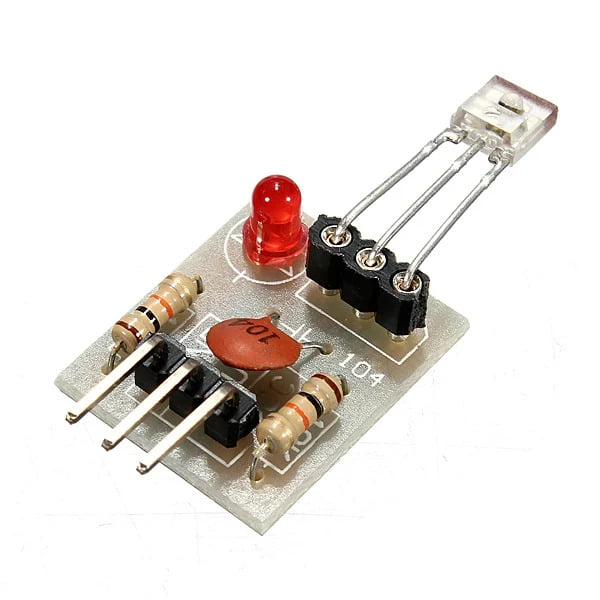

LASER Receiver Module

Electra Store SKU: MO-09876

65.00 EGP

In Stock

Quantity

Share to

Overview

This Laser Receiver Module is a high-sensitivity photoelectric sensor designed to detect laser beams (650nm red or 850nm IR) for precision alignment, security systems, and industrial automation. With a digital/analog output, it’s perfect for Arduino, PLCs, and DIY projects requiring beam-break detection.

Description

Key Features:

✔ Wide Detection Range – Works with 650nm (visible red) or 850–980nm (IR) lasers. ✔ Adjustable Sensitivity – Potentiometer to fine-tune detection threshold. ✔ Dual Output Modes:

Digital (TTL) – Outputs HIGH/LOW when beam is detected/lost.
Analog – Voltage varies with light intensity (for precision alignment). ✔ Fast Response Time – Detects interruptions in <1ms. ✔ Compact & Durable – PCB-mounted or standalone housing options.

Applications:

Laser Alignment Systems – CNC, 3D printer bed leveling.
Security Barriers – Intrusion detection via beam-break.
Industrial Automation – Conveyor belt object counting.
DIY Science Projects – Light-based triggers or communication.

Technical Specifications:

Detection Wavelength: 650nm (red) or 850–980nm (IR).
Operating Voltage: 3.3V–5V DC.
Output: Digital (TTL) + Analog (0V–VCC).
Response Time: <1ms.
Detection Distance: Up to 10m (depends on laser power).
Dimensions: 20mm × 15mm (typical).

Wiring Guide:

VCC → 3.3V/5V power.
GND → Ground.
OUT → Digital/Analog MCU input (e.g., Arduino D2 or A0).
Potentiometer → Adjust sensitivity.

Package Includes:

1x Laser Receiver Module.
Optional: Matched laser transmitter (select if needed).

Why Choose This Module?

✅ Plug-and-Play – Works with Arduino, Raspberry Pi, PLCs. ✅ Flexible Mounting – Screw holes for secure installation. ✅ Low Power – Draws <10mA.
