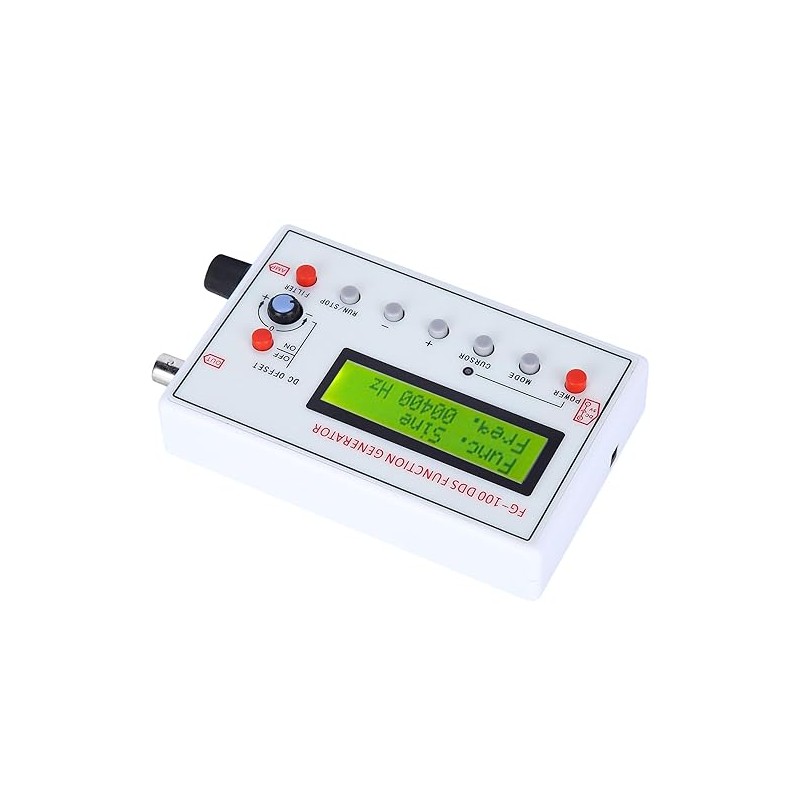

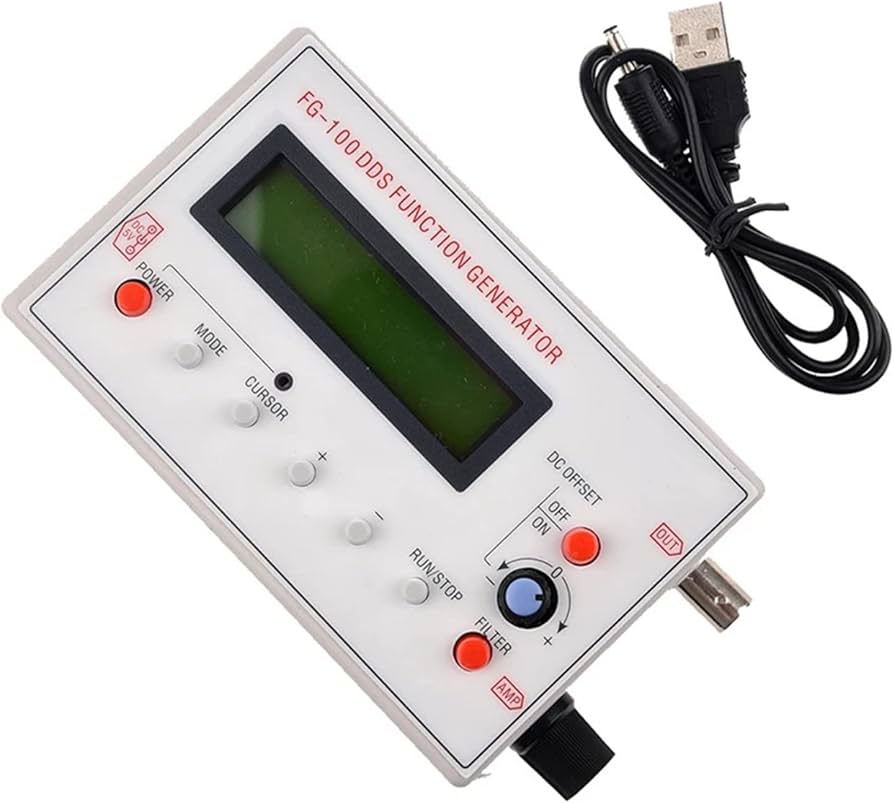

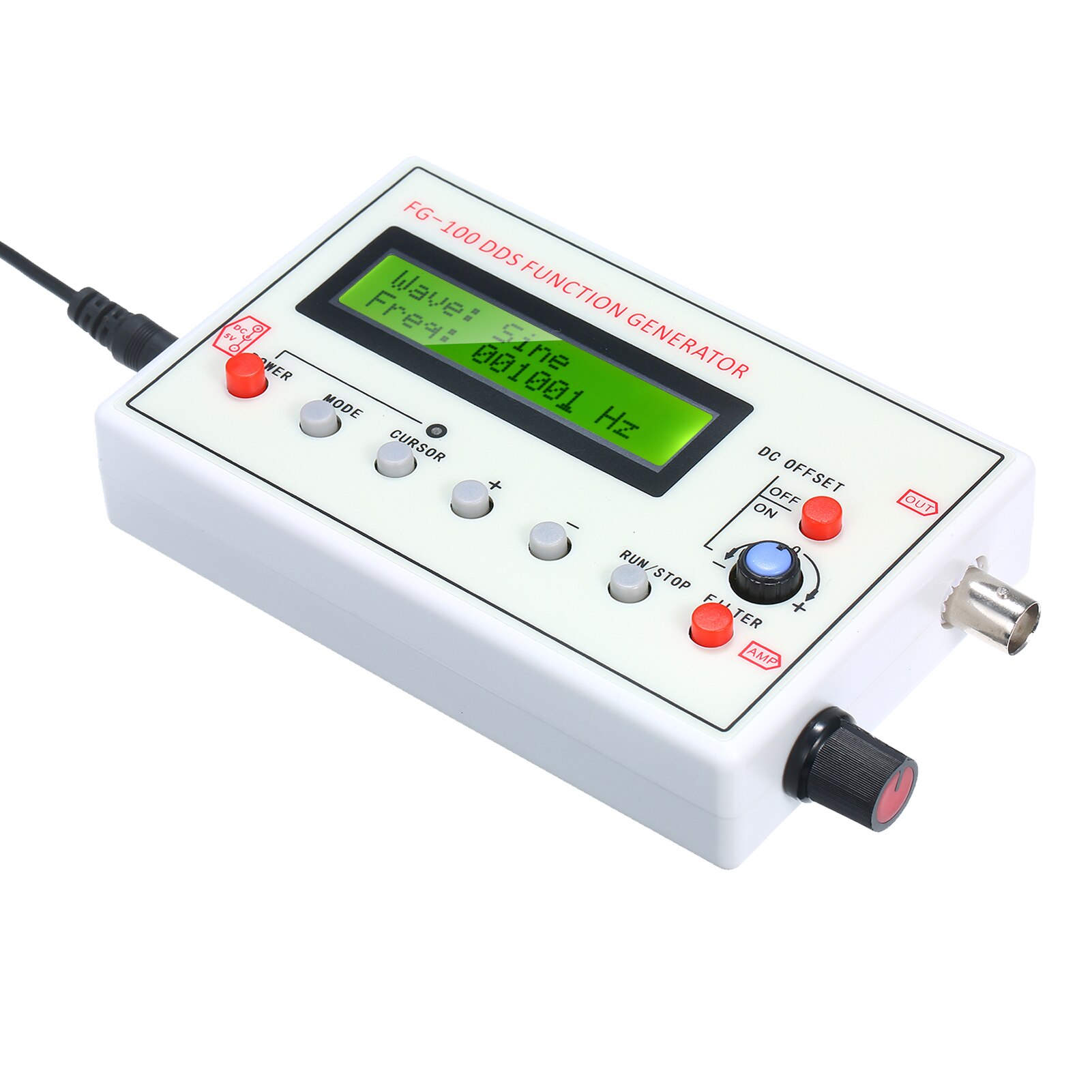

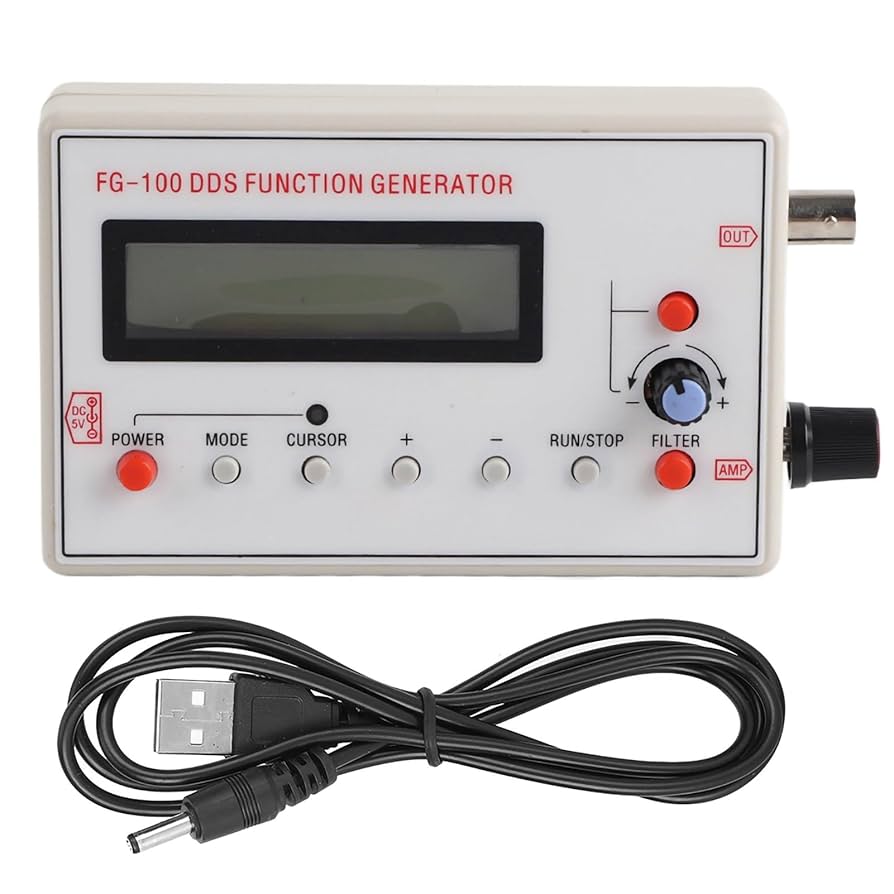

FG-100 DDS Function Generator
In Stock
Categories: Power Sources
Overview
The FG-100 DDS Function Generator is a compact, reliable, and easy-to-use digital signal generator based on Direct Digital Synthesis (DDS) technology. Itβs designed for engineers, students, and electronics hobbyists who need a portable solution for generating precise waveforms in lab testing, circuit debugging, or educational environments.
This pocket-sized device outputs multiple signal types and supports a wide frequency range, making it an essential tool for waveform analysis and signal simulation in electronic projects.
Description
FG-100 DDS Function Generator
βοΈ Key Features:
-
β Waveforms: Sine, Square, Triangle, Sawtooth, Reverse Sawtooth, and Pulse
-
β Frequency Range: 1Hz β 65534Hz (65.5kHz max)
-
β Output Voltage: Up to 20Vpp (adjustable with attenuation)
-
β Frequency Resolution: 1Hz
-
β Duty Cycle Adjustment: Especially useful for square wave signals
-
β Compact & Portable: Pocket-size tool ideal for on-the-go testing
-

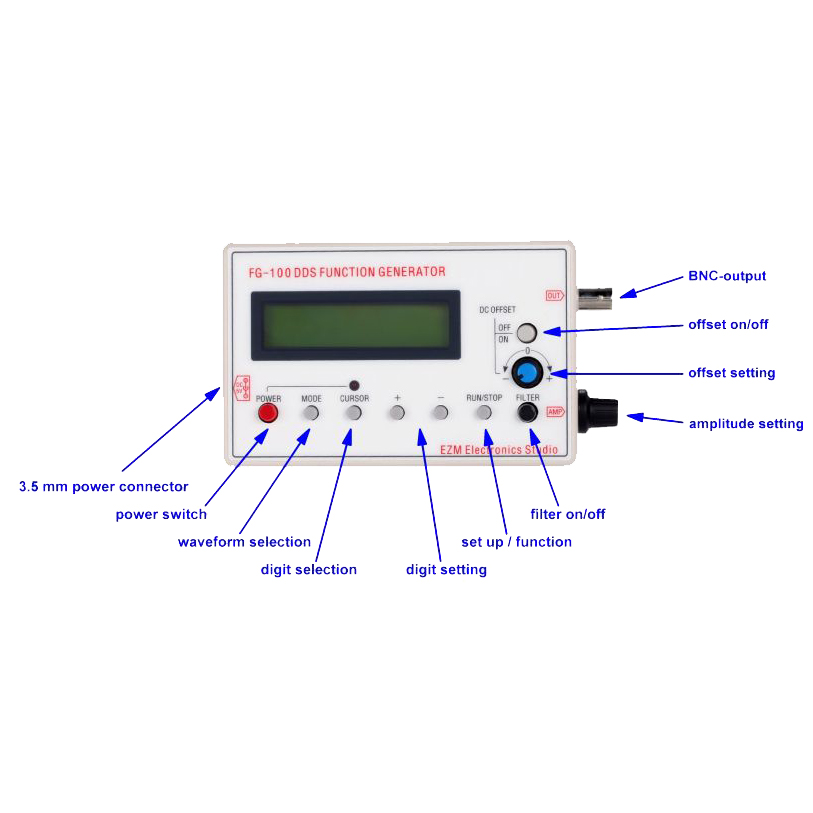

β Easy Operation: Intuitive controls with LCD display for clear signal parameter readout
-
β Power Supply: 9V DC (via standard barrel jack or battery clip)
π Physical Specifications:
-
Dimensions: Lightweight and compact for bench or field work
-
Display: Clear LCD screen for frequency, duty cycle, and waveform type
π¦ Package Includes:
-
1x FG-100 DDS Function Generator
-
1x BNC to alligator clip cable
-
1x User Manual
π§ͺ Applications:
-
Signal simulation for circuit testing
-
Audio and RF circuit development
-
Function testing in microcontroller projects
-
Educational demonstrations and lab use
-
Hobby electronics and DIY signal generation
