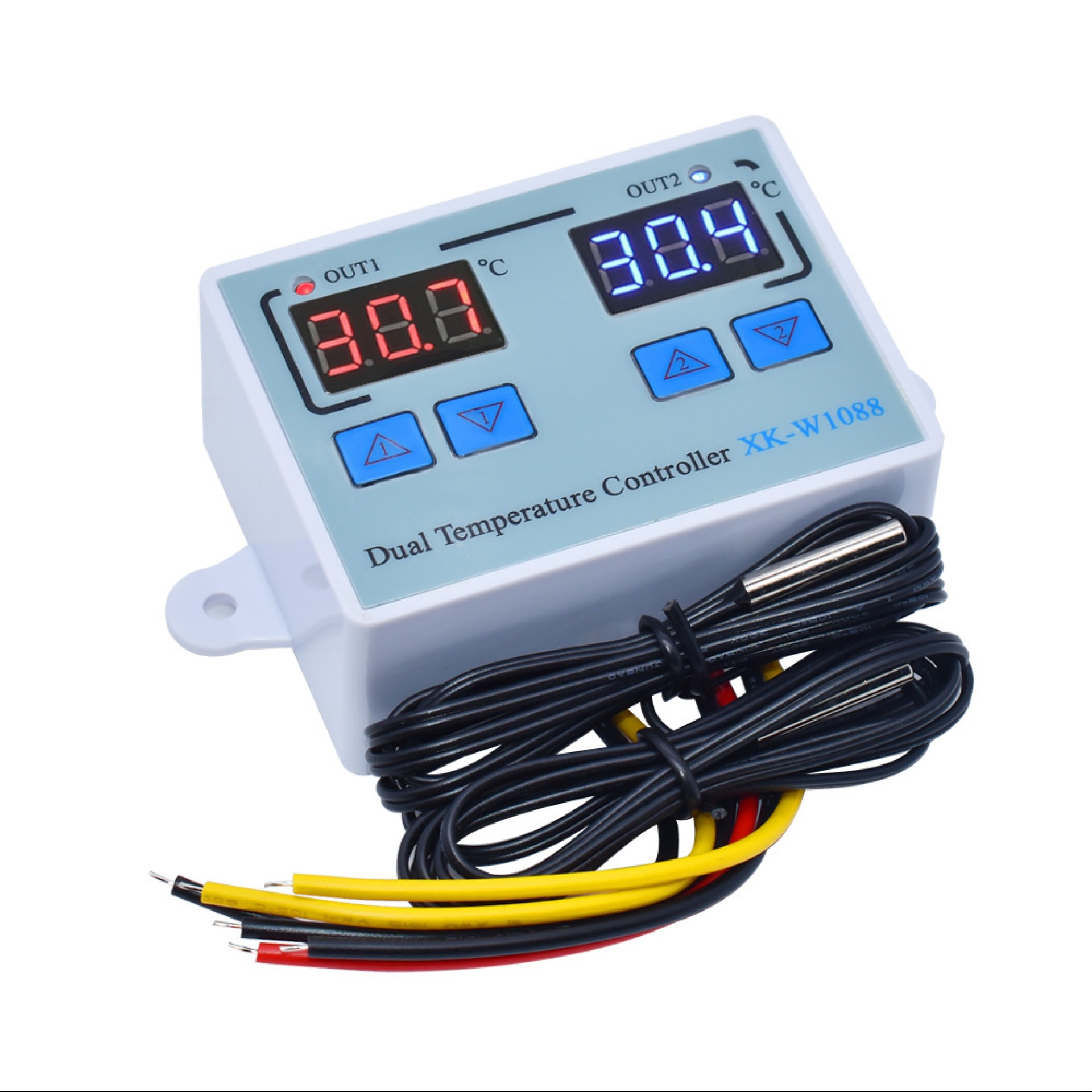

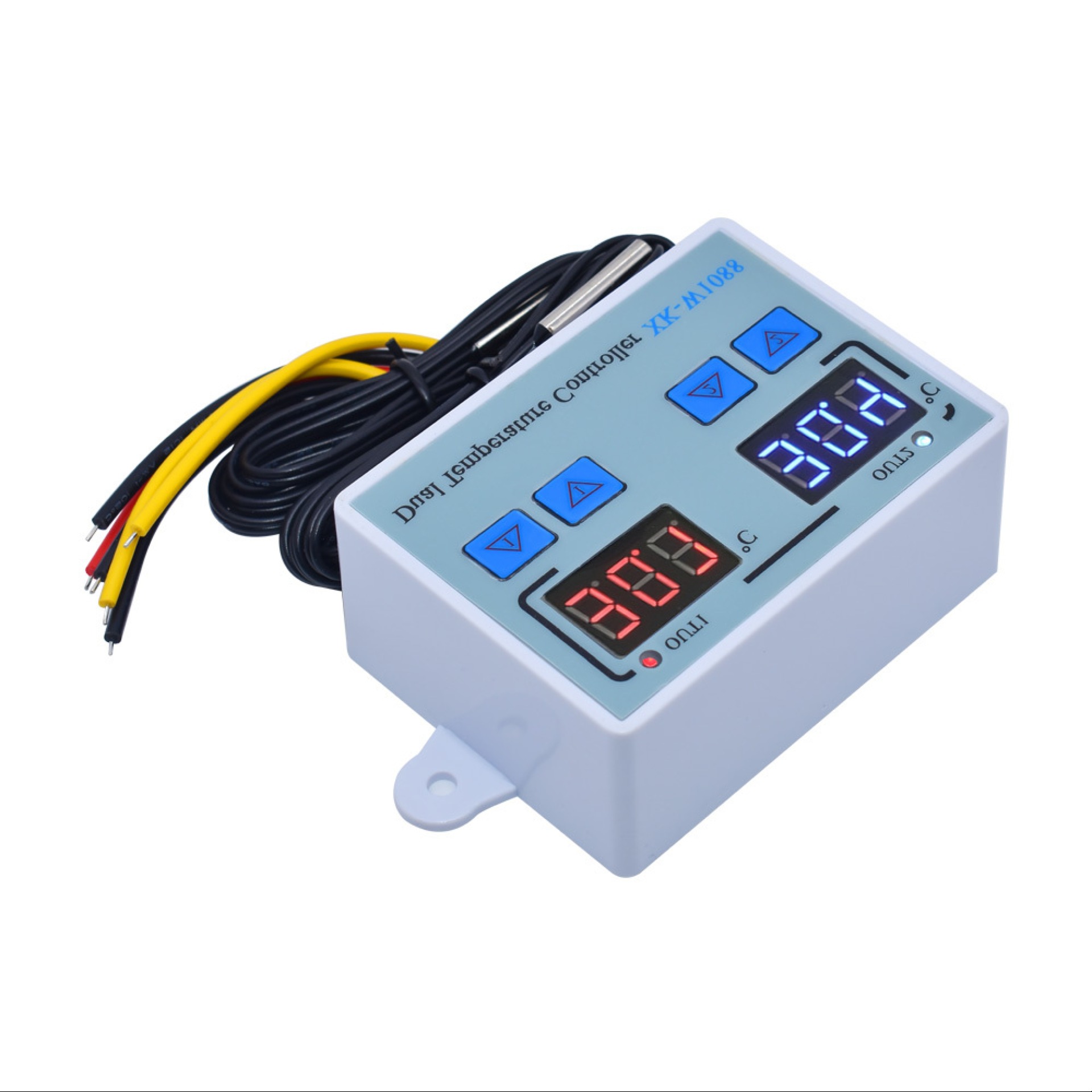

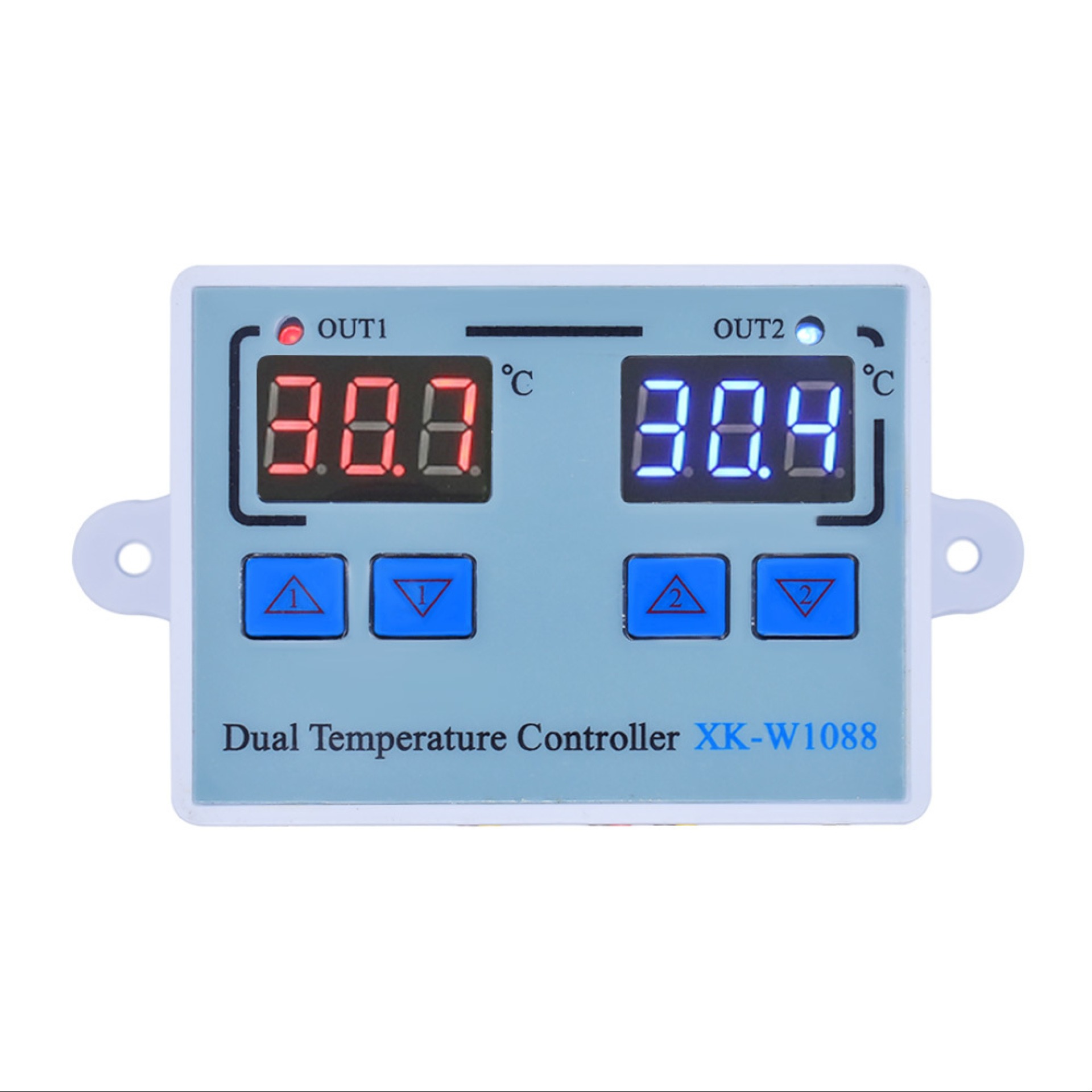

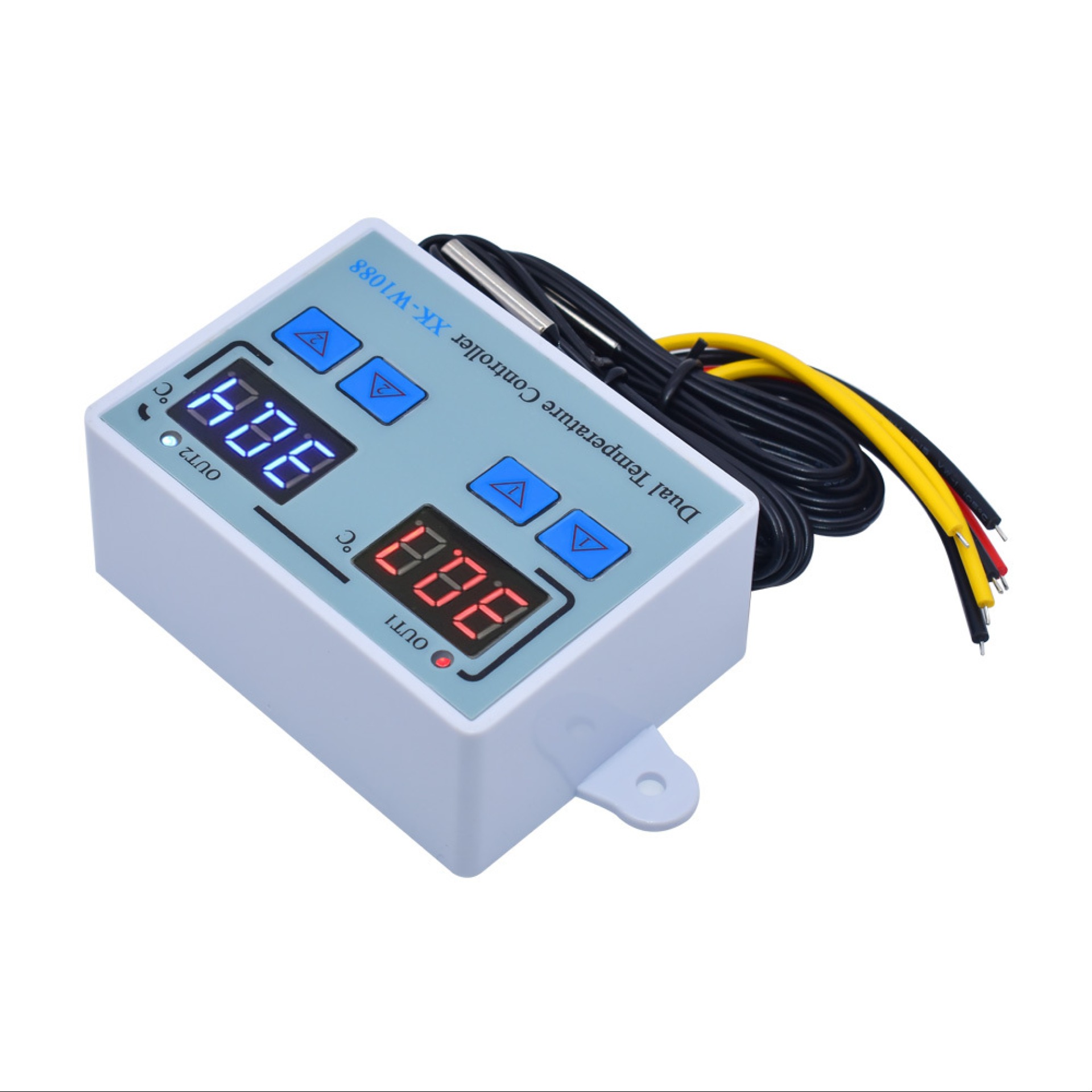

XH-W1088 220VAC Dual Digital Programmable Temperature Controller 10A

The XH-W1088 Dual Digital Temperature Controller 220VAC is designed to monitor and regulate temperature through two independent control channels. Each channel uses its own temperature sensor and relay output, allowing the controller to manage two temperature points or separate heating and cooling devices within the same system. It is suitable for applications that require automatic temperature switching based on adjustable start and stop thresholds.

The controller features dual LED displays for clear temperature monitoring and front-panel buttons for setting operating parameters. Its programmable thermostat function activates or deactivates connected equipment according to the measured temperature, reducing the need for manual intervention. Each channel can be configured for heating or cooling by adjusting the start and stop temperatures appropriately.

With a stated temperature measurement range of approximately -55°C to 120°C, the XH-W1088 can be used in incubators, greenhouses, aquariums, refrigeration systems, and other temperature-controlled environments. The 220VAC version is intended for installations with a compatible AC mains supply. Its relay outputs can switch suitable heating elements, fans, pumps, or other loads, provided their voltage and current requirements remain within the controller's ratings.

Features:

• Dual independent temperature control channels

• Dual LED digital temperature displays

• Programmable temperature start and stop thresholds

• Heating and cooling control modes

• Two NTC 10K temperature sensors

• Temperature display resolution of 0.1°C

• High- and low-temperature alarm settings

• Adjustable relay delay functions

• Settings retention after power interruption

• Direct relay output for compatible loads

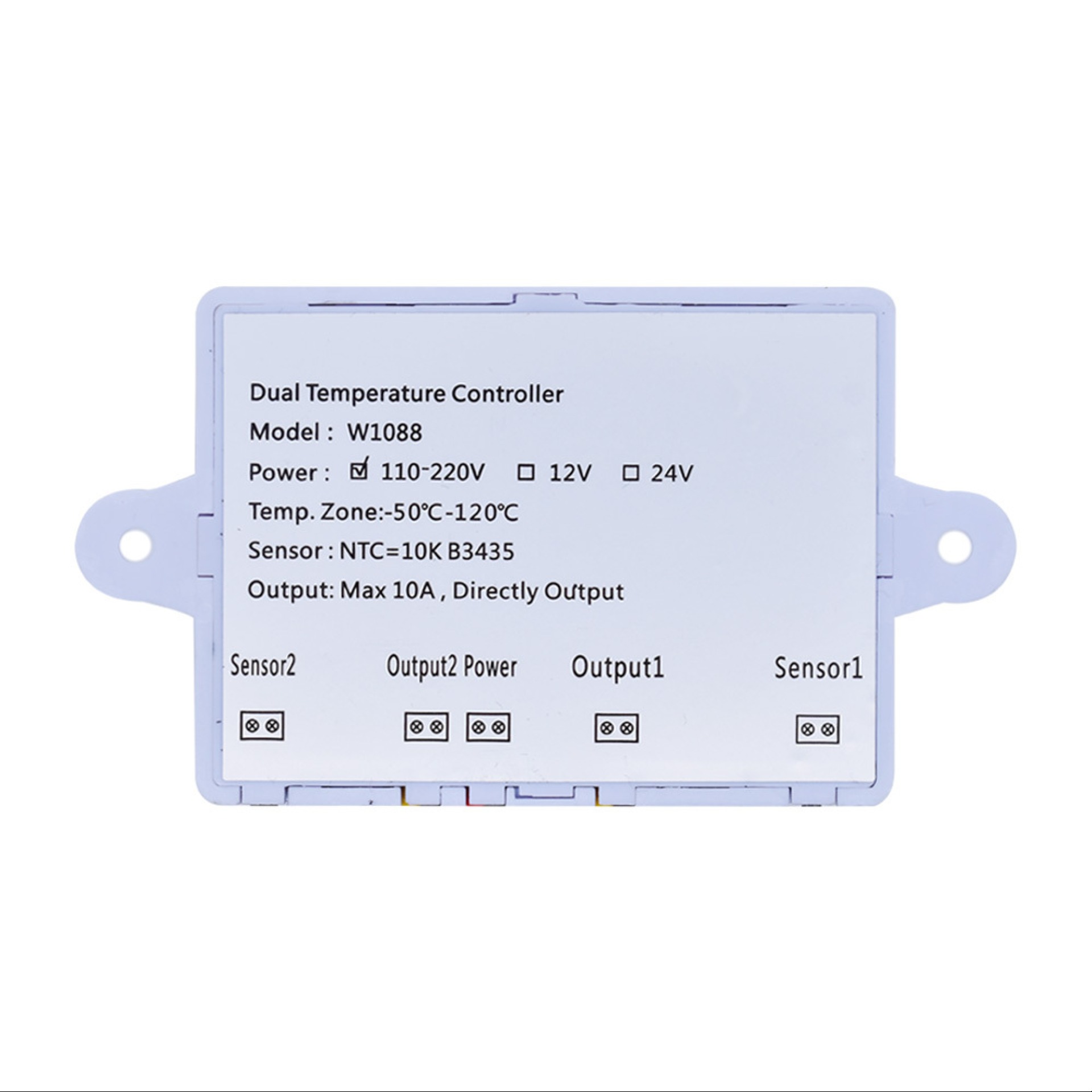

Specifications:

• Model: XH-W1088

• Product Type: Dual Digital Temperature Controller

• Power Supply: 220VAC version; verify the exact input rating on the unit

• Control Channels: 2 independent channels

• Temperature Sensor: NTC 10K

• Temperature Measurement Range: Approximately -55°C to 120°C

• Display Resolution: 0.1°C

• Measurement Accuracy: Approximately ±1°C

• Relay Outputs: 2

• Relay Current Rating: Up to 10A per relay, subject to the load type and operating conditions

• Display Type: Dual LED digital display

• Control Method: Adjustable temperature thresholds

• Typical Sensor Cable Length: Approximately 1m per sensor

• Typical Dimensions: Approximately 75 × 55 × 31mm

Specifications can vary between XH-W1088 versions. Confirm the exact supply voltage, relay contact rating, sensor quantity, and dimensions for the supplied unit before installation.

Applications:

• Egg incubators and temperature-controlled breeding systems

• Greenhouses and agricultural temperature monitoring

• Aquariums and water-temperature regulation

• Refrigeration and cold-storage systems

• Heating elements and thermostatically controlled heaters

• Cooling fans and ventilation systems

• Laboratory and educational electronics projects

• Temperature-controlled cabinets and enclosures

• Automation systems requiring two temperature channels
