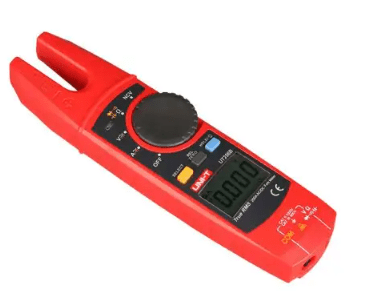

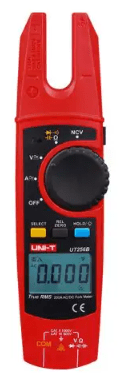

UT256A 200A True RMS Fork Meter

Electra Store SKU: UT-256A

1,650.00 EGP

On Backorder

Available for order — ships when in stock

Quantity

Share to

Categories: UNI-T

Overview

UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the ‘fork’ past the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.

Description

Specifications
Model	Range	UT256A
AC current (A)	200A	±(1.8% 2)
AC voltage (V)	1000V	±(1.2% 3)
DC voltage (V)	1000V	±(0.8% 3)
Resistance (Ω)	60MΩ	±(1% 2)
Frequency (Hz)	10~10kHz	±(0.1% 5)
Features
Display count		6000
Auto range		√
True RMS		√
NCV		Tricolor
Data hold		√
LCD backlight		√
Auto power oﬀ	About 15 minutes	√
Continuity buzzer		√
Low battery indication	≤2.4V	√
Input protection		√
Input impedance	≥10MΩ	√
General Characteristics
Power	1.5V battery (LR6) x 2
Display	35mm x 26mm
Product color	Red and grey
Product net weight	251g; UT256B: 163.7g
Product size	217mm x 58.8mm x 38.5mm
