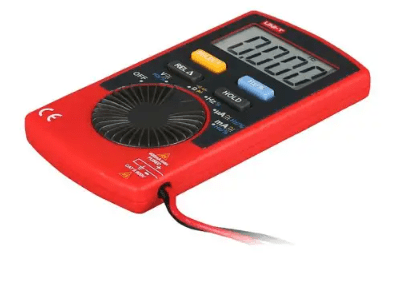

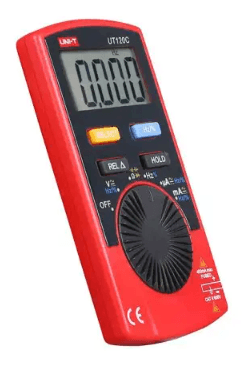

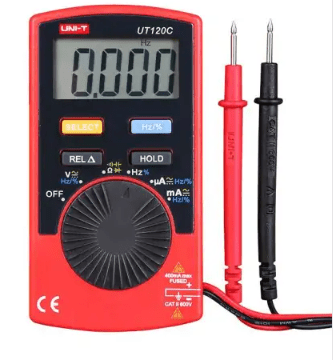

Ut120C Pocket Size Digital Multimeter- Auto Range

Electra Store SKU: Ut-120C

880.00 EGP

On Backorder

Available for order — ships when in stock

Quantity

Share to

Categories: UNI-T

Description

UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.

Specifications of UT120C Pocket Size Digital Multimeter

Specifications	Range	UT120C
DC voltage (V)	600V	±(0.8% 1)
AC voltage (V)	600V	±(1.2% 3)
DC current (A)	400mA	±(1% 3)
AC current (A)	400mA	±(1.5% 5)
Resistance (Ω)	40MΩ	±(1% 2)
Capacitance (F)	100μF	±(4% 3)
Frequency (Hz)	10MHz	±(0.5% 3)
Features
Display count		4000
Auto range		√
Duty cycle	0.1%~99.9%	√
Diode		√
Auto power off	Around 30 minutes	√
Continuity buzzer		√
Low battery indication	≤2.4V	√
Data hold		√
Relative mode		√
Input impedance for DCV	Around 10MΩ	√
General Characteristics
Power	3V battery (CR2032)
Display	43mm x 22mm
Product color	Red and grey
Product net weight	76g
Product size	110mm x 58.2mm x 10.8mm
