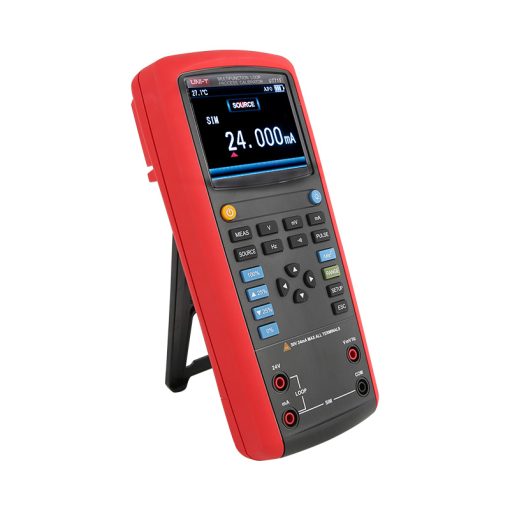

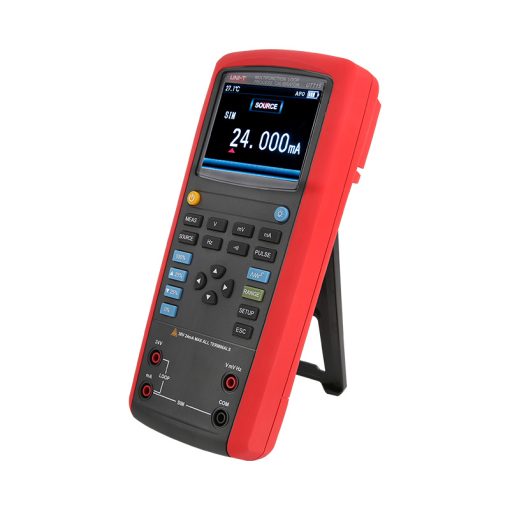

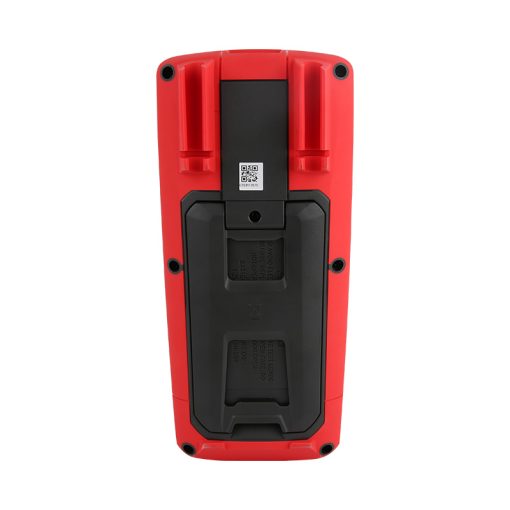

UNI-T UT715 Multifunction Loop Process Calibrator

Electra Store SKU: UT715

29,000.00 EGP 29,000.00 EGP Save 0%

Out of Stock

Share to

Categories: UNI-T

Overview

UNI-T UT715 is a professional multifunction loop process calibrator designed for industrial automation and process control systems. Engineered for both measurement and simulation of loop signals, it supports current, voltage, and loop power testing, making it an ideal tool for instrumentation engineers, maintenance technicians, and control system professionals.

Description

🌟 Key Features:

✅ Current Measurement & Sourcing: 0 to 24mA
✅ Voltage Measurement & Sourcing: 0 to 20V
✅ Loop Power Supply (24V): Powers devices under test
✅ 4-20mA Loop Simulation & Testing
✅ Step & Ramp Output Modes: For dynamic transmitter testing
✅ High Accuracy: ±0.02% for current and voltage ranges
✅ Large Backlit LCD Screen: With clear numeric and unit display
✅ Data Hold / Auto Power Off for enhanced usability
✅ Rechargeable Battery: With long operation time
✅ Compact, Portable & Durable Design

🧰 Applications:

🔧 Calibrate Loop-Powered Transmitters (4–20mA)
🔧 Test and Simulate PLC and DCS Analog Inputs
🔧 Loop Troubleshooting in Process Plants
🔧 Signal Simulation for Input Devices
🔧 Field Maintenance of Process Instruments

📊 Technical Specifications:

Function	Range	Accuracy
DC Voltage (source/measure)	0 – 20V	±(0.02% + 2 digits)
DC Current (source/measure)	0 – 24mA	±(0.02% + 2 digits)
Loop Power Output	24V	—
Step Output (current/voltage)	Programmable	Predefined steps
Ramp Output	Smooth ramp	Adjustable time

📦 What’s in the Box:

1 × UNI-T UT715 Loop Process Calibrator
1 × High-Quality Test Lead Set
1 × Rechargeable Battery (pre-installed)
1 × USB Charging Cable
1 × Carrying Case
1 × User Manual

🛡️ Build & Safety:

💼 Rugged Casing for industrial use
🔋 Rechargeable Li-ion Battery for field operations
🌐 CE Certified, built to CAT II 30V safety standards
🌙 Auto Backlight-Off and Power Saving Mode

✅ Ideal For:

Instrumentation & Control Engineers
Process Plant Technicians
Calibration Labs
On-site Service and Maintenance Teams
Automation & Industrial System Integrators

🔍 Why Choose the UNI-T UT715?

The UT715 combines ease of use, rugged portability, and precision performance, making it a trusted companion for any professional dealing with process instrumentation. Whether you're simulating, sourcing, or measuring current or voltage signals, the UT715 ensures maximum efficiency with minimal error.
