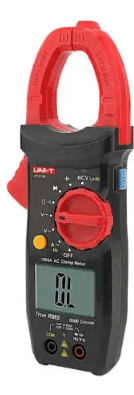

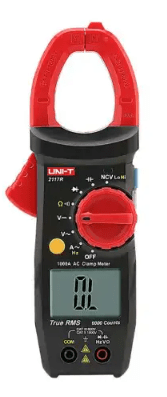

UNI-T UT2117R Clamp Meter 1000A

Electra Store SKU: UT-2117R

1,650.00 EGP

On Backorder

Available for order — ships when in stock

Quantity

Share to

Categories: UNI-T

Overview

2117R True RMS 1000A AC Clamp Meter 2117R True RMS 1000A AC clamp meter is a great choice for AC current measurement. It features 1000V AC/DC voltage measurement, 60MΩ resistance measurement, and bright backlight. The dual-mode NCV allows users to detect live voltages without contacting any metallic surface. The high-frequency response range is suitable for more measuring applications. This meter is CE/UKCA approved and features a CAT II 1000V / CAT III 600V safety rating with 1000V overload protection.

Description

Specifications of 2117R True RMS 1000A AC Clamp Meter

Specifications	Range	2117R
Certificates	CE/UKCA
AC current (A)	1000A	±(1.5% 4)
AC frequency (Hz)	20Hz－10kHz	±(1.0% 5)
AC voltage (V)	1000V	±(1.0% 2)
DC voltage (V)	1000V	±(0.7% 3)
Resistance (Ω)	60MΩ	±(0.8% 2)
Capacitance (F)	6mF	±(4% 5)
Features
Display count		6000
Jaw opening		33mm
True RMS		√
Auto range		√
Diode test		√
NCV		√
Data hold		√
LCD backlight		√
Auto power off	Approximately 15 minutes	√
Continuity buzzer		√
Low battery indication	≤2.5V approximately	√
Input protection		√
Safety rating	CATII 1000V/CATⅢ 600V
General Characteristics
Power	AAA 1.5V x 2
Product net weight	210g
Product size	204x63x38 mm
