UNI-T Coating Thickness Gauge UT343E

Electra Store SKU: UT-343E

7,440.00 EGP

On Backorder

Available for order — ships when in stock

Quantity

Share to

Categories: UNI-T

Overview

UT343E Coating Thickness Gauge UT343E coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. The measuring range is up to 2000µm, and the data can be analyzed through Bluetooth APP and PC software of mobile phones, which can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection areas.

Description

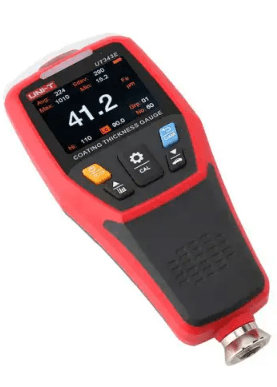

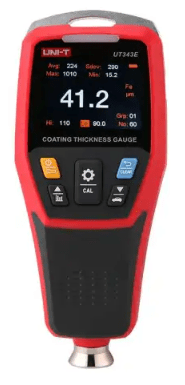

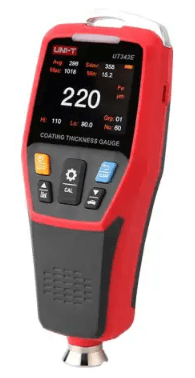

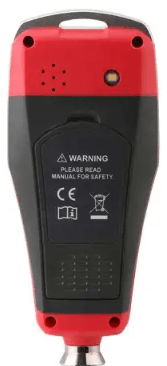

UNI-T Coating Thickness Gauge UT343E

Specification	Range	Thickness	Resolution	Accuracy
Certificates	CE/UKCA
Ferrous and non-ferrous substrates measurement (FE and NFE)	0~2000μm	0~99.9μm	0.1μm	±(2%H 2μm)
		100~2000μm	1μm
	0~78.7mil	0~4.99mil	0.01mil	±(2%H 0.08mil)
		5.0~78.7mil	0.1mil
Bluetooth and App function	√
Probe measuring force	0.3~1.5N
Display	2”color TFT screen
Auto rotatable screen	√
Unit conversion	μm/mil
LED /Audio alarm	√
Limit setting	0~2000μm
Measurement method	Single/continuous
Statistical measurement	Max/Min/Avg
Matrix identification modes	Auto/manual
Voice broadcast	√
Flashlight	√
USB communication	Upper computer communication
Data storage	3300 data
LCD brightness control	√
Auto power off	5 minutes
Low battery indication	√
Power supply	3.7V 1300mAh Lithium battery
General Characteristics
Power	3.7V 1300mAh Lithium battery
LCD Size	2 inch
Product color	Red and Gray
Product net weight	150g
Product size	1526535mm
