STM8S103F3P6 System Board TYPE-C STM8S STM8 Development Board Minimum Core Board

Electra Store SKU: RE-47365

350.00 EGP

In Stock

Quantity

Share to

Overview

The STM8S103F3P6 System Board is a compact and cost-effective minimum core development board based on the STM8S103F3P6 microcontroller from STMicroelectronics. Designed for beginners, hobbyists, and embedded systems developers, it provides a stable and easy-to-use platform for learning and developing STM8-based applications.

Featuring a USB Type-C interface for power and programming, this board offers a modern, reliable connection option. Its minimal design includes only the essential components, making it perfect for integration into custom projects or for rapid prototyping.

Description

Key Features:

Microcontroller: STM8S103F3P6, 8-bit, 16 MHz CPU
Memory: 8 KB Flash, 1 KB SRAM, 640 Bytes EEPROM
Compact Minimum System Design: Includes MCU, clock circuit, reset circuit, and basic I/O.
USB Type-C Interface: Modern and robust connection for power and programming.
Onboard Reset & User Keys: Easy testing and debugging.
Breakout I/O Pins: All GPIOs available via header pins for breadboard or direct wiring.
Stable Power Supply: Supports 5V input via Type-C or 3.3V regulated supply.
Low Power Consumption: Ideal for battery-powered or energy-efficient applications.

Specifications:

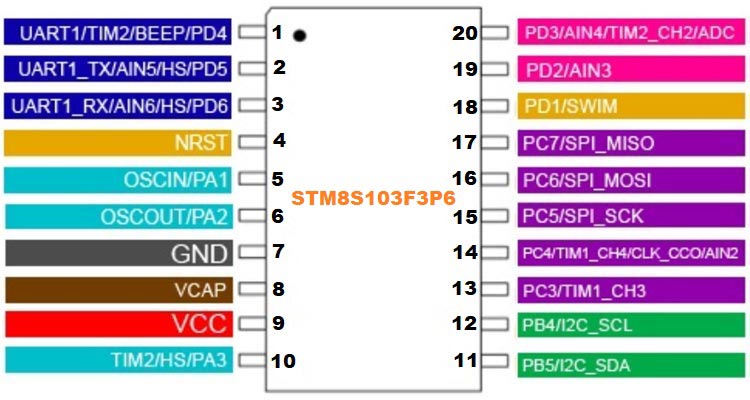

MCU: STM8S103F3P6 (8-bit STM8 core)
Operating Voltage: 3.3V – 5V
Clock Frequency: 16 MHz
Flash Memory: 8 KB
SRAM: 1 KB
EEPROM: 640 Bytes
Programming Interface: SWIM (Single Wire Interface Module)
Dimensions: Compact PCB for easy embedding
Connectivity: USB Type-C for power (not for direct USB communication without programmer)
