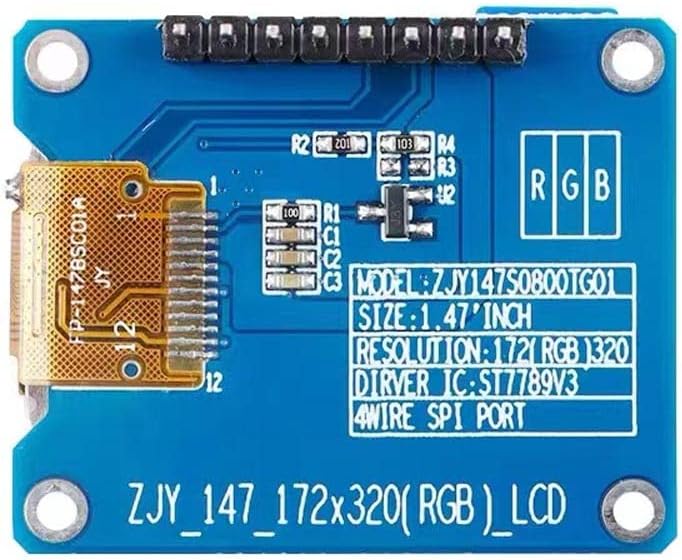

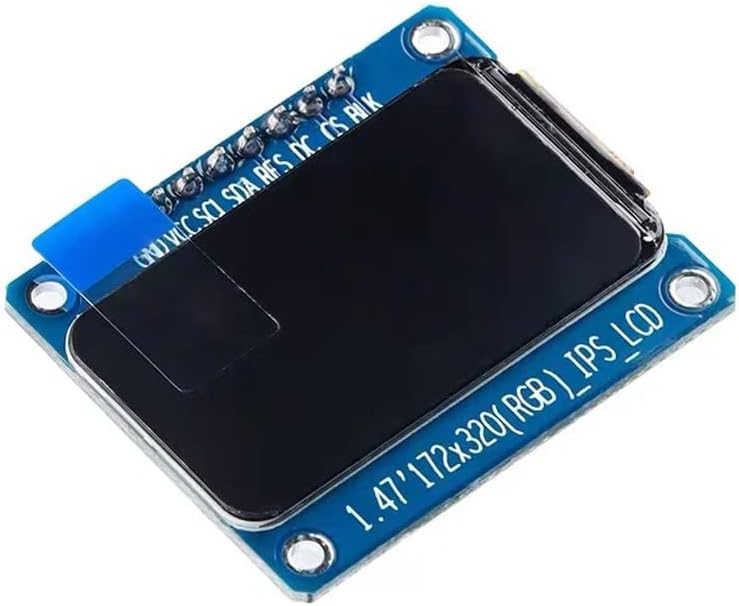

1.47 inch 172x320 SPI Full Color TFT HD IPS Screen LCD LED Display Module

Electra Store SKU: TF-76698

325.00 EGP

Out of Stock

Share to

Categories: Light Source and Display, LCD

Overview

The 1.47 Inch TFT LCD Display Module (172x320 resolution, SPI interface, IPS panel) is a compact yet powerful full-color screen designed for embedded systems, DIY electronics, smart devices, and IoT applications. Featuring HD IPS technology, this display provides vivid colors, sharp details, and a wide viewing angle, making it an excellent choice for projects that require high-quality visuals in a small form factor.

With its SPI interface, the module is easy to integrate with popular microcontrollers and development boards such as Arduino, ESP32, STM32, and Raspberry Pi. The display also supports adjustable viewing direction, offering flexibility for different device orientations and user interfaces.

Description

1.47 inch 172x320 SPI Full Color TFT HD IPS Screen LCD LED Display Module

Key Features:

Display Type: TFT LCD with HD IPS technology
Screen Size: 1.47 inch
Resolution: 172(H) RGB × 320(V) pixels (high clarity for text & graphics)
Interface: SPI interface for easy integration
Display Color: Full color, vibrant visuals
Viewing Direction: Full view, adjustable display orientation
Logic Voltage: 3.3V (compatible with most microcontrollers)
Brightness: 600 cd/m² (typical), excellent visibility even in bright conditions
Backlight: 3 white LEDs (parallel)
Display Area: 17.3892(H) × 32.352(V) mm
Panel Size: 19.39(H) × 36.28(V) × 1.46(D) mm
Pixel Pitch: 0.0337(H) × 0.1011(V) mm
Operating Temperature: -20°C to +70°C, reliable in different environments

Applications:

Smart wearable devices (watches, bands, fitness trackers)
IoT and smart home products
Portable electronic gadgets
Robotics and automation systems
User interface displays for Arduino, ESP32, STM32, Raspberry Pi
Educational and prototyping projects

Why Choose This TFT IPS Display?

High Definition IPS Screen: Crisp text, sharp images, and vivid colors with excellent contrast.
Full Viewing Angle: Ensures readability from any direction.
Compact Size: Small yet powerful, perfect for portable and handheld devices.
High Brightness (600 cd/m²): Clear visibility even under strong light conditions.
Easy to Interface: SPI connection makes integration quick and simple.

The 1.47 Inch 172x320 TFT HD IPS LCD Display Module is the ideal choice for developers, students, and professionals who need a high-quality, energy-efficient display for their electronic projects.
