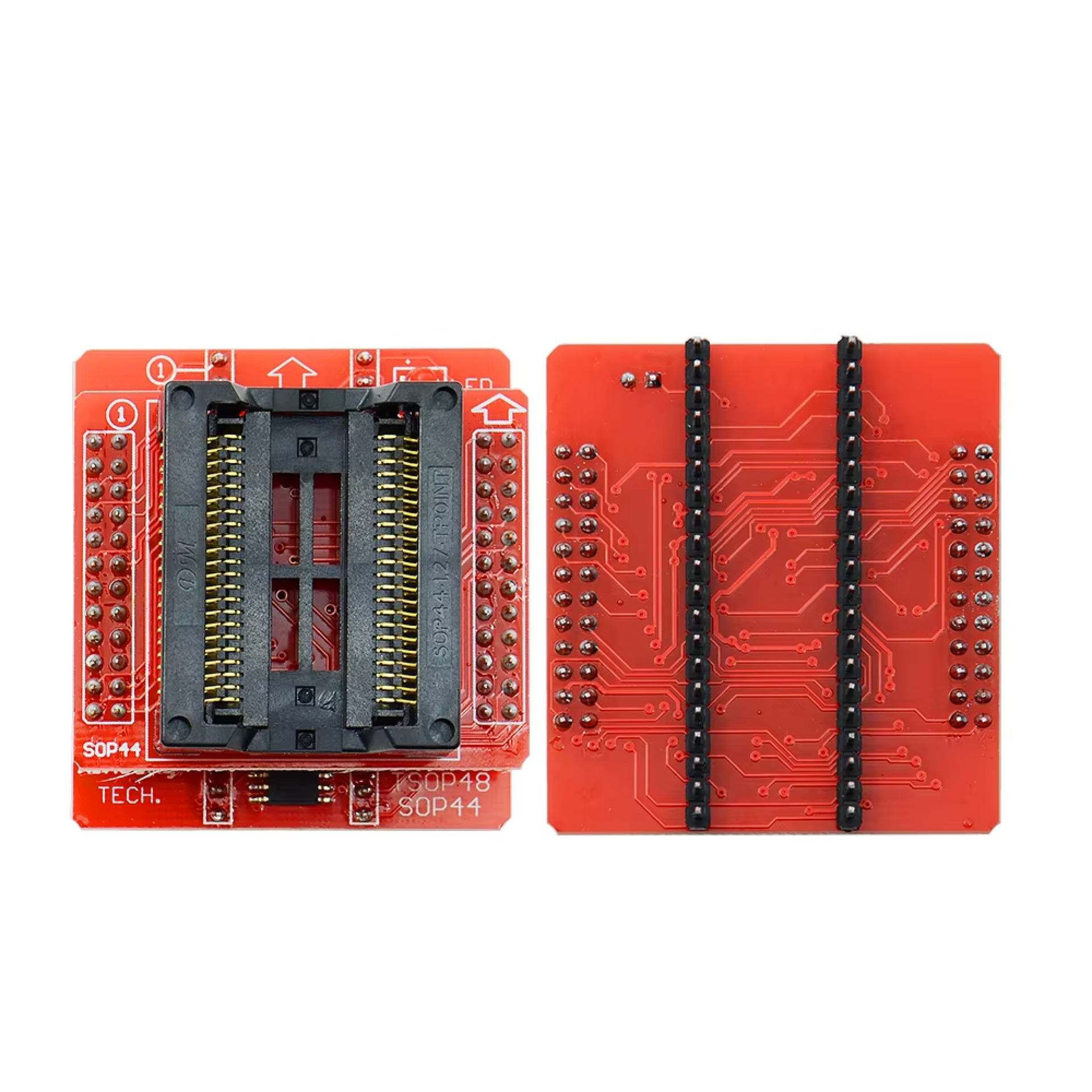

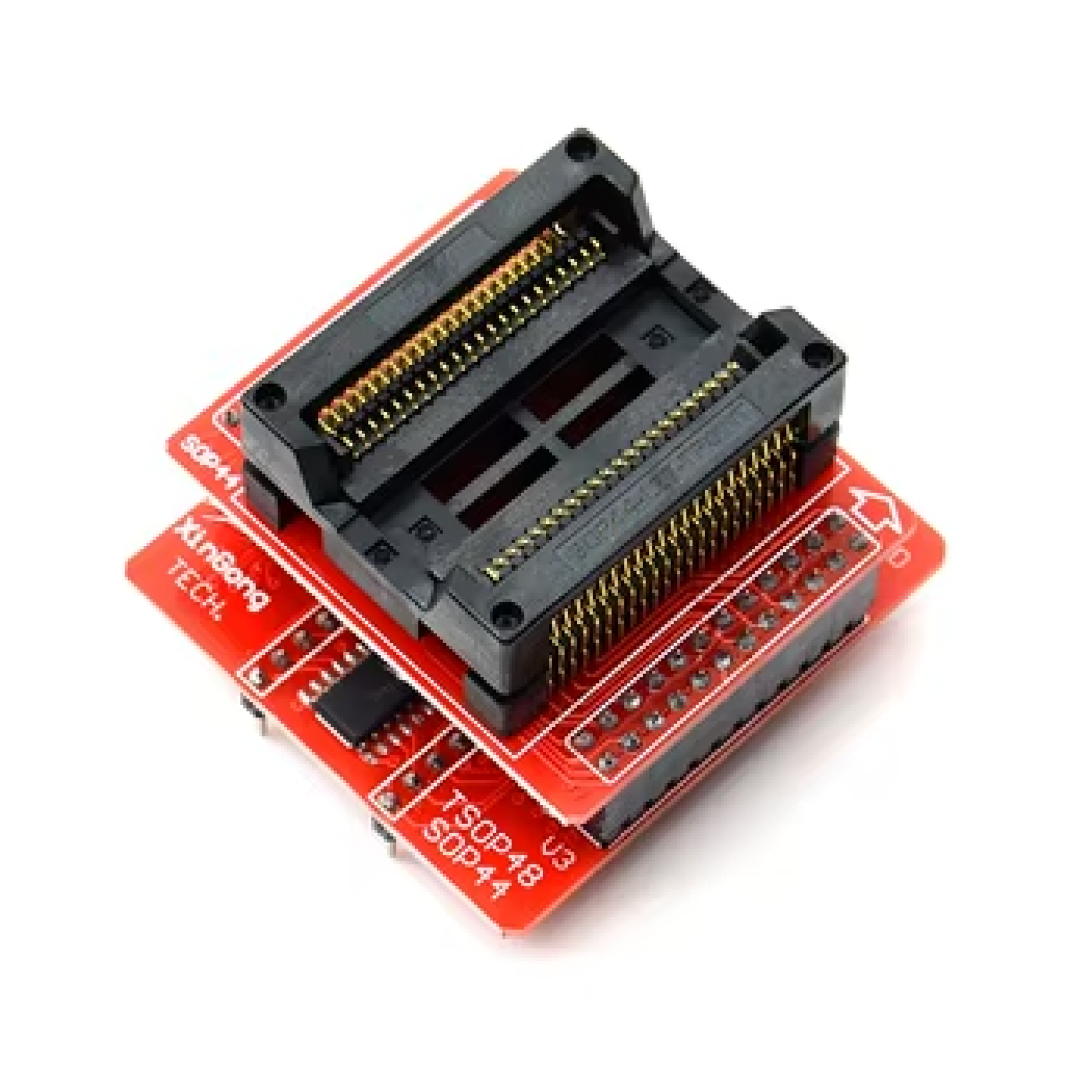

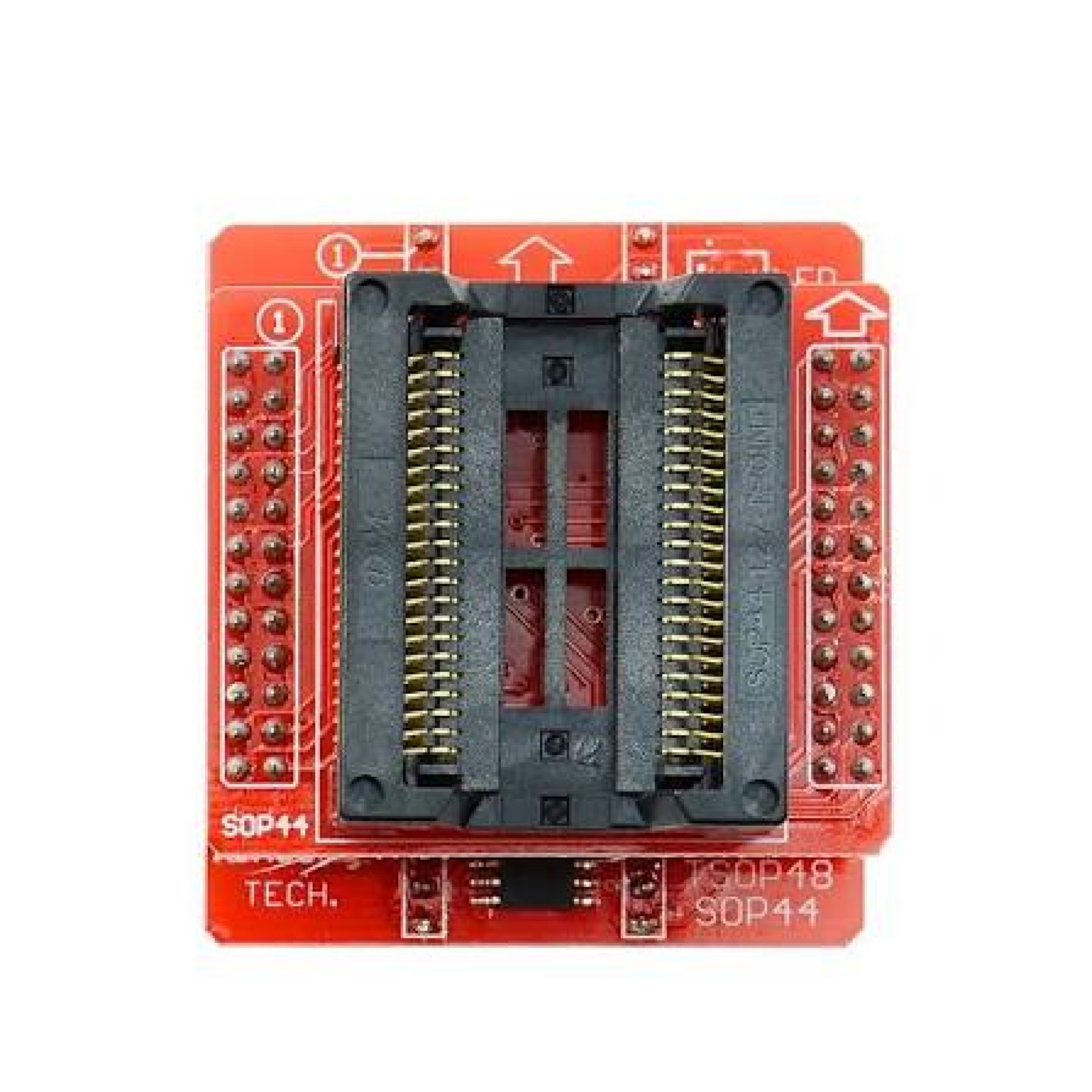

SOP44 Adapter + TSOP48 V3 Board voor

The SOP44 Adapter + TSOP48 V3 Board is a purpose-built accessory set for technicians and hobbyists who regularly work with surface-mount memory chips on universal IC programmers. This TSOP48/SOP44 adapter combo is designed to work with the TL866CS, TL866A, and TL866II Plus universal USB programmers, giving users a reliable way to read, write, and verify chips that don't fit a standard DIP socket.

At its core, the set solves a common problem in chip programming: most universal programmers are built around a 40-pin DIP interface, but many modern EEPROM, EPROM, NAND, and NOR flash chips come in SOP44 or TSOP48 surface-mount packages. The V3 base board handles the electrical translation between the programmer's DIP socket and the finer-pitch SOP44 or TSOP48 footprint, while the dedicated SOP44 adapter provides a secure, low-wear socket specifically shaped for 44-pin chips. Together, they let a single programmer service a much wider range of chip packages without needing separate hardware for each package type.

In practice, this means less time spent hunting for compatible adapters and more time actually recovering or flashing data. The board is especially useful for BIOS chip recovery, automotive ECU and airbag module reprogramming, router and modem firmware work, and general flash memory diagnostics where the target chip is soldered in a surface-mount footprint rather than a socketed DIP package.

Build quality matters here because programmer adapters see repeated insertion cycles, and a socket with weak contact pressure can cause read/write errors that look like a bad chip when the real issue is a poor connection. This V3 revision is built around that concern, aiming to maintain stable pin contact across many programming cycles so results stay consistent.

Technicians choose this adapter set over generic alternatives because it targets the specific programmer family (TL866 series) most commonly used in independent repair shops and hobbyist labs, and because bundling the SOP44 adapter with the TSOP48 V3 base board covers two of the most frequently encountered surface-mount packages in one purchase. For anyone doing regular chip-level repair or firmware recovery work, having both adapters on hand removes a recurring bottleneck in the workflow.

Features

• Compatible with TL866CS, TL866A, and TL866II Plus universal USB programmers

• Supports both SOP44 (44-pin) and TSOP48 (48-pin) chip packages

• V3 base board design for translating DIP programmer interface to surface-mount pinouts

• Dedicated SOP44 socket adapter included for secure chip seating

• Suitable for NAND flash, NOR flash, EPROM, EEPROM, and MCU/BIOS chips

• Reduces need for multiple single-purpose adapters

• Reusable socket design intended for repeated programming cycles

• Practical for chip-level repair, BIOS recovery, and firmware reflashing work

Specifications

• Supported Packages: SOP44 (44-pin), TSOP48 (48-pin)

• Compatible Programmers: TL866CS, TL866A, TL866II Plus

• Board Type: V3 base board with separate SOP44 adapter

• Typical Use: NAND/NOR flash, EPROM, EEPROM, and MCU/BIOS chip programming

Applications

• BIOS chip reading, writing, and recovery

• Automotive ECU, airbag, and immobilizer module chip programming

• Router and modem firmware flash recovery

• NAND/NOR flash memory diagnostics and repair

• EEPROM data recovery on laptops and embedded boards

• General-purpose surface-mount IC programming with TL866 programmers

• Electronics repair shop and workbench use

Package Includes

• 1x TSOP48/SOP44 V3 Base Board

• 1x SOP44 Adapter
