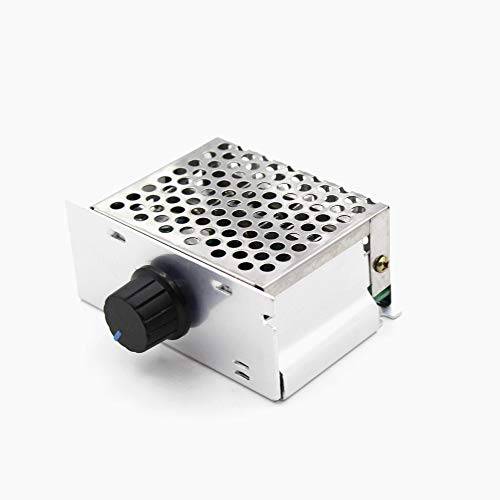

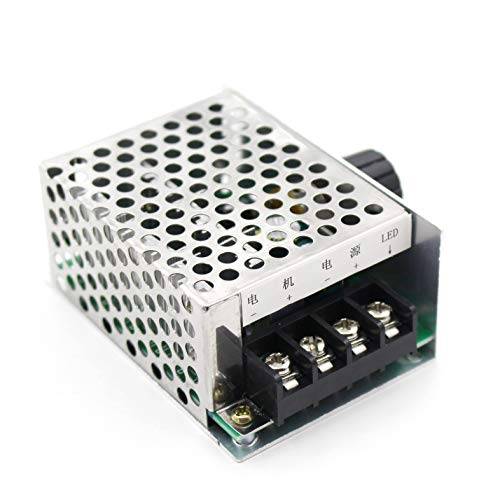

PWM DC Motor Speed Regulator Controller Switch DC (9V-60V) 40A

Electra Store SKU: MD-28191

280.50 EGP

Out of Stock

Share to

Categories: Controllers

DC input voltage range 9V 12V 24V 48V 60V, output current 0-40A, power 2000W.

Description

Wide voltage input 9-60V, maximum output current 40A (if the working voltage is high, the working current needs to be reduced. Please refer to the power supply to better protect the motor and controller. It is recommended to use 12V within 300W. Use 24V within 400W, 48V within 450W, and 60V within 500W.).
This knob has a switch function, which can control the motor speed between 0% and 100%.
The adjustable potentiometer can separate the flexible cable.
Wide adjustment range of duty cycle.
Motor runs smoothly.
Without noise and vibration.
With power indicator.
Stable circuit design.
Suitable for long-term work.

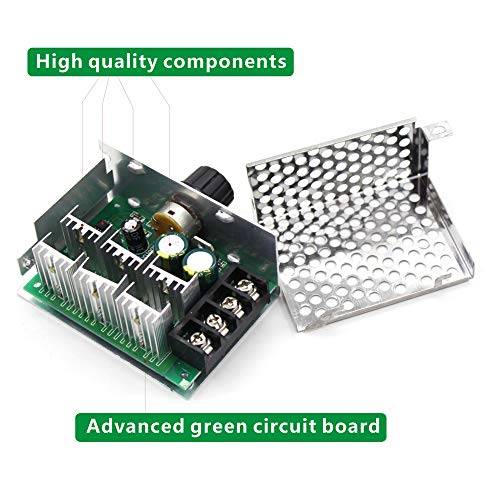

Using high-quality high-voltage MOS tubes, high-frequency low-resistance capacitors, automotive fuses, accurate parameters, not easy to heat, and easy to replace.
Protect the internal circuit with an aluminum case.
There is a 40A fuse inside this kit to prevent short circuit of the motor interface.
Double protection of motor and motor speed controller.
