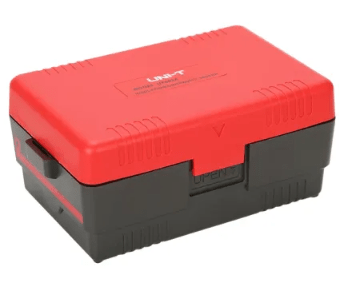

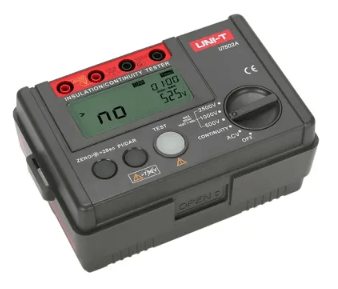

New:Insulation Resistance Tester UNI-T Megger UT502A 2500V

Electra Store SKU: UT-502A

4,300.00 EGP

On Backorder

Available for order — ships when in stock

Quantity

Share to

Categories: UNI-T

Description

Specifications of UT502A Insulation Resistance Testers UNI-T Megger UT502A 2500V

Specifications	Range		UT502A
Insulation resistance (Ω)	Test voltages	500V/1000V/2500V	0%~10%
	500V	0MΩ~99.9MΩ	±(3% 5)
	500V	100MΩ~5GΩ	±(5% 5)
	1000V	0MΩ~99.9MΩ	±(3% 5)
	1000V	100MΩ~5GΩ	±(5% 5)
	2500V	0MΩ~99.9MΩ	±(3% 5)
		100MΩ~9.9GΩ	±(5% 5)
		10GΩ~20GΩ	±(10% 5)
	Load current	50V (R=50kΩ) 1mA	0%~10%
		100V (R=100kΩ) 1mA	0%~10%
		250V (R=250kΩ) 1mA	0%~10%
		500V (R=500kΩ) 1mA	0%~10%
		1000V (R=1MΩ) 1mA	0%~10%
		2500V (R=1MΩ) 1mA	0%~10%
Short-circuit current			<2mA
Low resistance (Ω)	0.01Ω~200Ω (about 5.0V/>200mA）		±(2% 3)
AC voltage (V)	30V~600V		±(2% 3)
Features
Display count			2000
DAR	60s/15s and 60s/30s		√
PI			√
Auto range/Low battery indication			√
LCD backlight/Light alarm			√
Buzzer alarm/High voltage indication			√
Over load indication/Auto discharge			√
Test voltage secondary display			√
10MΩ internal resistance test			√
Meets IEC 61557	61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only)
General Characteristics
Power	1.5V battery (LR6) x 6
Display	70.6mm x 34mm
Product color	Red and grey
Product net weight	500g
Product size	150mm x 100mm x 71mm
