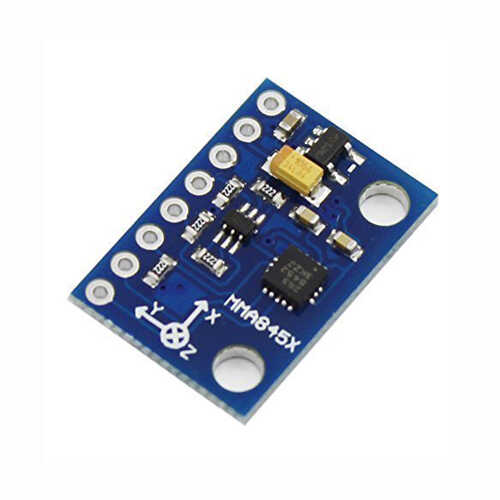

GY-45 MMA845 3-Axis Accelerometer Module
Out of Stock
Categories: Other Modules
Overview
This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins.
The MMA8452 has user selectable full scales of ±2g/±4g/±8g. The device can be configured to generate inertial wake-up interrupt signals allowing the MMA8452 to monitor events and remain in a low power mode during periods of inactivity.

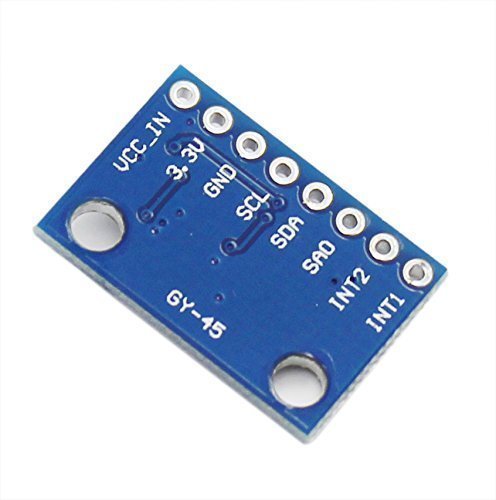

This board breaks out the ground, power, I2C and two external interrupt pins.
Description
- 1.95 V to 3.6 V supply voltage
- ±2g/±4g/±8g dynamically selectable full-scale
- Output Data Rates from 1.56 Hz to 800 Hz
- 12-bit and 8-bit digital output
- I2C digital output interface
- Two programmable interrupt pins Current Consumption: 6 μA – 165 μA
Accelerometer ---------- Arduino
3.3V ----------------------> 3.3V
SDA ---------------------->A4
SCL ----------------------> A5
INT2 ---------------------> D3
INT1 ---------------------> D2
GND --------------------> GND
Package Included- 1 x GY-45 MMA845 3-Axis Accelerometer Module
