Expansion board For ESP32 30P With (Type-C , Micro USB) Dual Interface 30 Pin

Electra Store SKU: wl-1995

110.00 EGP

Out of Stock

Share to

Overview

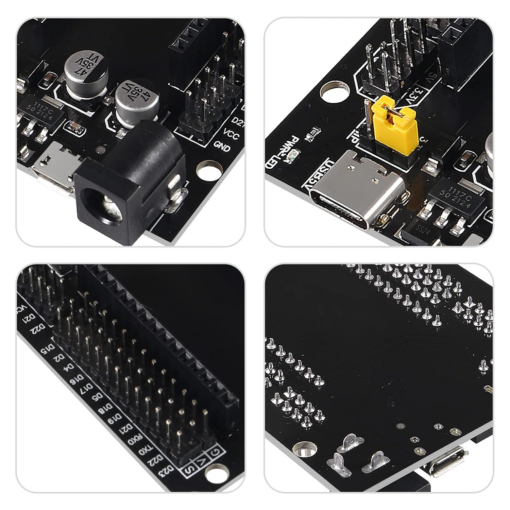

This ESP32 30P Expansion Board is the perfect breakout solution designed to simplify development and prototyping with the ESP32 30-pin development boards. It expands all the essential I/O pins from your ESP32 and gives you easy access via labeled headers, while also offering dual USB interfaces (Type-C & Micro USB) for versatile power and programming options.

It features a sturdy PCB with clear pin labels, onboard power management, and built-in voltage regulation to ensure safe and stable operation of your ESP32 modules.

Description

Key Features:

Compatible with ESP32 30-Pin Boards: Designed for seamless integration with standard ESP32 Dev Boards (30 pins).

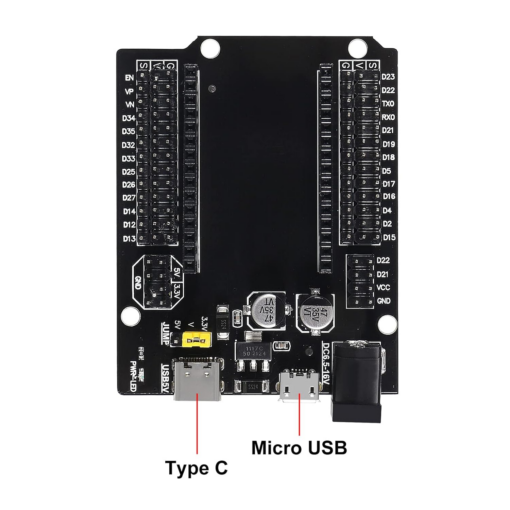

Dual USB Interface: Both USB Type-C and Micro USB ports for convenient power and programming options (only one active at a time).

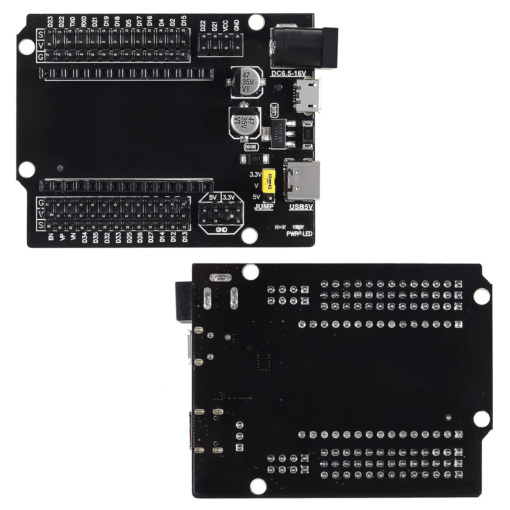

Easy Access to GPIOs: Breaks out all 30 pins to headers with clear labels – ideal for breadboarding and module connections.
Stable Power Supply: Integrated voltage regulation circuit supports 5V input and provides stable 3.3V output.
Compact & Durable Design: High-quality PCB with anti-slip rubber feet and mounting holes.

Applications:

ESP32 prototyping and development
IoT and smart device projects
Rapid testing of sensors and modules
Educational electronics and embedded systems
Reliable lab bench interface for ESP32-based designs

Technical Specifications:

Supported Boards: ESP32 Dev Board (30-pin version)
USB Ports: 1 x Type-C, 1 x Micro USB (switchable)
Pin Headers: Female headers with 2.54mm pitch
Voltage Input: 5V via USB
Voltage Output: 3.3V and 5V rails available on board
Dimensions: Approx. 85mm x 60mm

Streamline your ESP32 development process with this dual USB 30P Expansion Board, offering cleaner wiring, more robust connections, and greater convenience for your IoT, automation, and prototyping projects.
