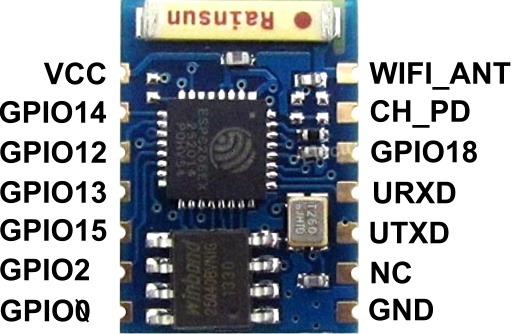

ESP8266 Wifi Transceiver Module ESP03

Electra Store SKU: MD-22934

66.00 EGP

Out of Stock

Share to

Categories: Wireless

Overview

ESP8266 Small transceiver module Wi-Fi-based chip, compatible with standard 802.11 b / g / n 2.4 GHz, has SPI interface, 7 GPIO, TCP / IP stack and antenna ceramic PCB. Ideal for wireless sensor networks, home automation, building automation, and custom applications. Power: 3.3 Vdc, dimensions (mm): 17.4 x 12.2.

Description

ESP8266 ESP-03 Serial Wi-Fi Module Wireless Transceiver Send Receive

Support B/G/N
Communication range up to 100 yards depending on environment.
Standard 3.3VDC operation with 5V compatible I/O
Standard 3 wire (TXD/RXD/GND) serial communication (idle high) at 115200/8/N/1.
Standard 0.1" (2.54mm) half through hole.
Upgradeable firmware.
Three modes of operations: Client/Access Point/Both Client and Access Point.
Support all major security schemes: OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK.
Support both TCP and UDP communication.
Working as TCP/UPD server supports up to five (5) connections.
Working as station can connect up to 5 TCP/UPD servers. The ESP-04 can connect to all standard non-SSL websites in the world.
Simple AT commands for all operations.
Connection based data reception or transparent data reception.
Programmable client connection inactivity timeout.
Automatic domain name address resolution for public domain name but not the local name within the local area network (router).
