WaveShare ESP32-C6 Pico Mini development board
🌟 Key Features
✅ WiFi 6 (802.11ax) + Bluetooth 5.0 LE
-
WiFi 6 – Higher speeds, lower latency, better multi-device performance
-
Bluetooth 5.0 LE – Low-power wireless for IoT sensors & wearables
✅ High-Efficiency RISC-V Processor
-
160MHz 32-bit single-core RISC-V CPU – Optimized for IoT workloads
-
320KB SRAM + 8MB Flash (ESP32-C6-MINI-1 module) – Ample storage for firmware
✅ Rich Peripheral Support
-

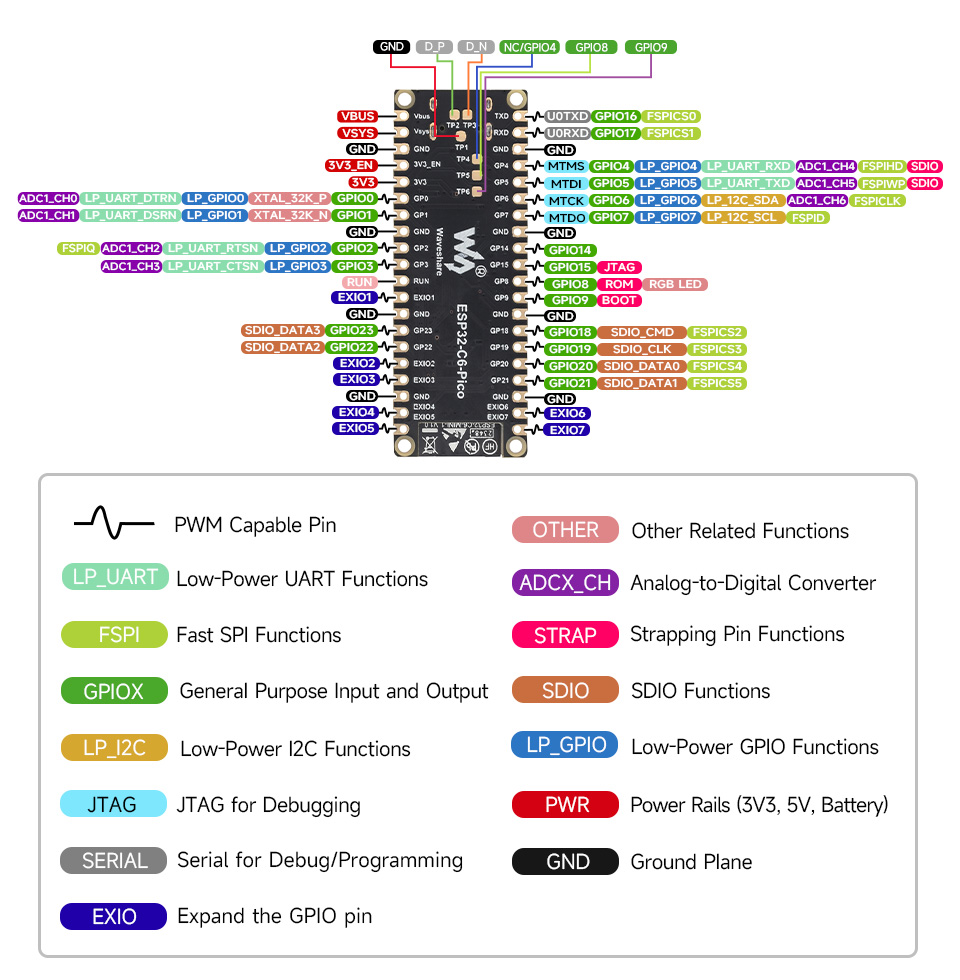

30+ GPIOs (UART, SPI, I2C, PWM, ADC, DAC, USB OTG)
-
USB Type-C – For programming & power (5V)
-
Built-in RGB LED – Debugging & status indication
✅ Ultra-Low Power & Security
-
Deep sleep mode (µA current) – Ideal for battery-powered devices
-
Secure Boot & Flash Encryption – Enterprise-grade security
✅ Developer-Friendly Ecosystem
-
Arduino IDE, ESP-IDF, MicroPython, and Rust support
-
Plug-and-play USB programming (no debugger needed)
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| MCU | ESP32-C6 (RISC-V @ 160MHz) |
| Wireless | WiFi 6 (802.11ax) + BT 5.0 LE |
| Memory | 320KB SRAM + 8MB Flash |
| GPIO | 30+ (multifunctional) |
| USB | Type-C (OTG support) |
| Antenna | PCB antenna (2.4GHz) |

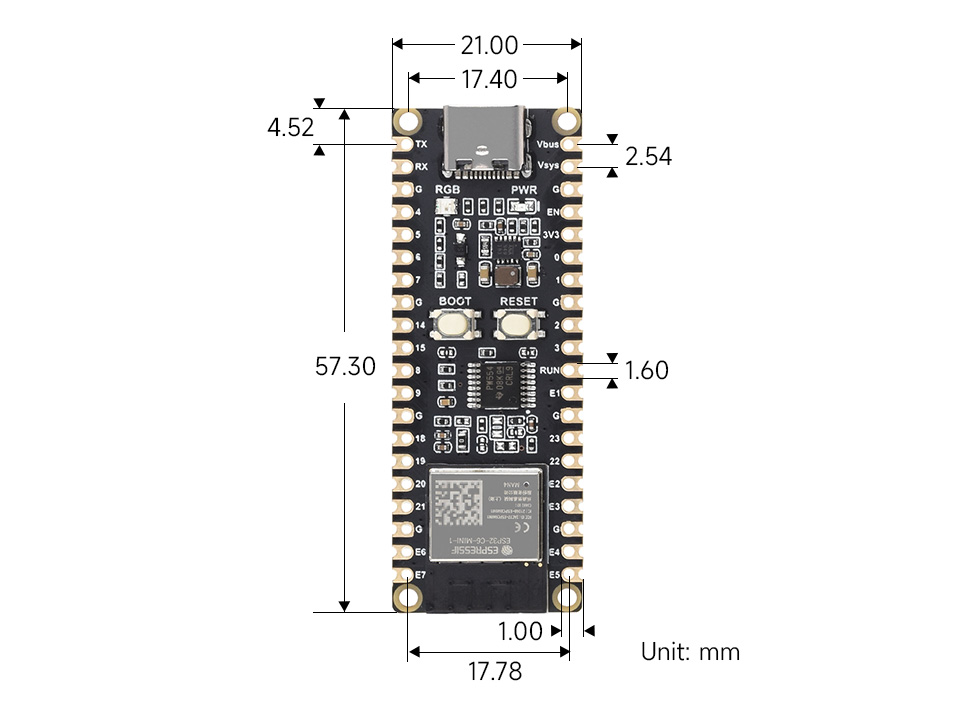

| Dimensions | ~25mm × 18mm |
📦 Package Includes
-
1x ESP32-C6 Development Board (ESP32-C6-MINI-1 module)
-
Optional headers (if selected)
💡 Why Choose ESP32-C6?
🔹 WiFi 6 support – Future-proof for high-density IoT networks 🔹 RISC-V efficiency – Better performance per watt than ARM Cortex-M 🔹 More GPIOs than ESP32-S3 – Greater expandability 🔹 Type-C convenience – Modern connectivity
🚀 Ideal Applications
✔ Next-gen smart home hubs ✔ Industrial wireless sensors ✔ AIoT edge computing ✔ High-efficiency gateways ✔ Prototyping next-gen wireless tech
