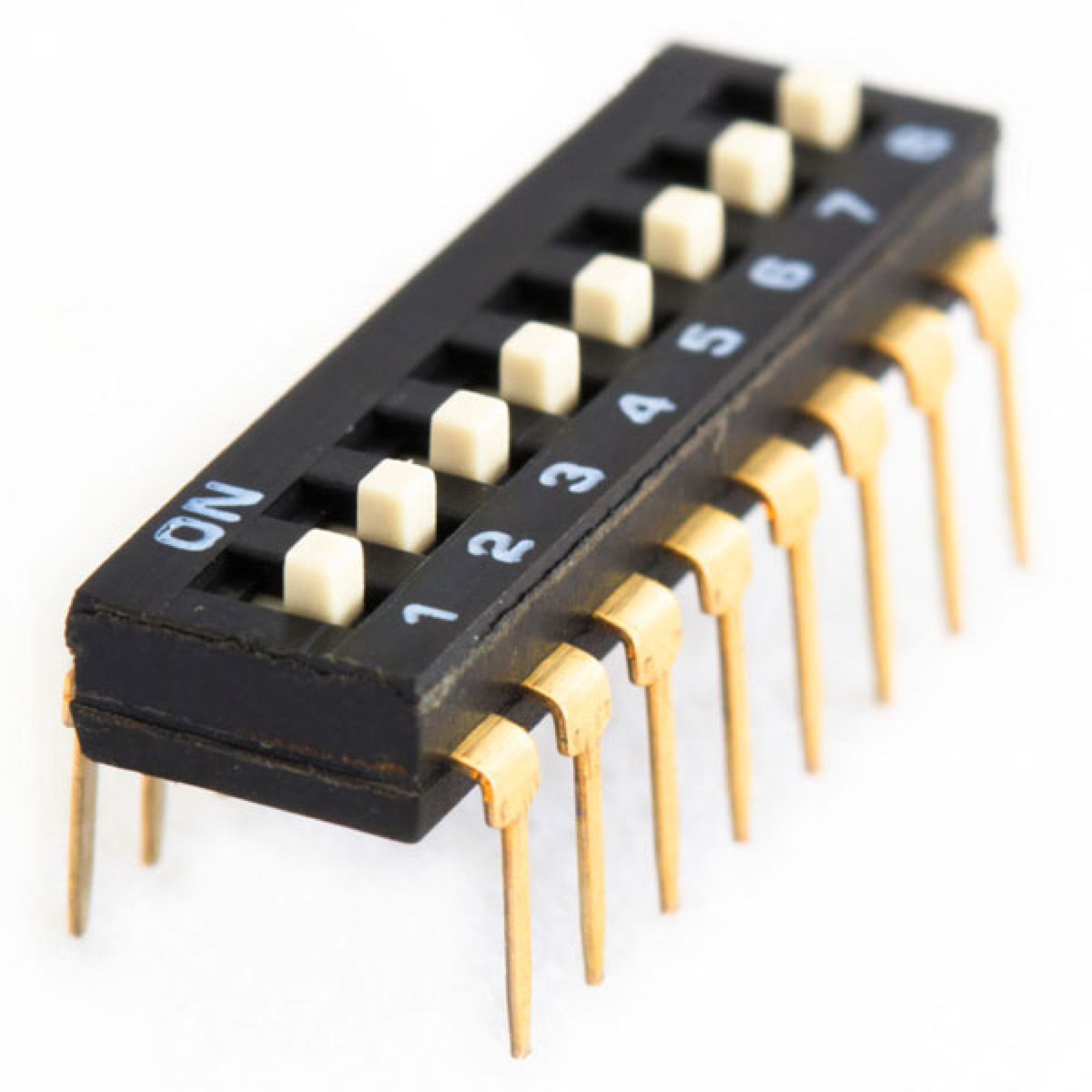

DIP Switch 8-Way – Long Leg

The DIP Switch 8-Way – Long Leg is an 8-position miniature switch designed for configuring electronic circuits, development boards, control modules, and embedded systems. It provides eight individual ON/OFF switch positions in a compact package, allowing users to manually select or configure multiple digital settings without modifying the circuit.

Each switch position operates as an individual mechanical contact, making the component suitable for applications where binary configuration, address selection, mode control, or option setting is required. The long-leg terminal design provides extended leads for through-hole PCB mounting, making the switch suitable for prototyping and circuit boards where additional lead length is required for installation or soldering.

DIP switches are commonly used in electronic hardware to configure device addresses, communication options, operating modes, feature selections, and other user-defined settings. The 8-way configuration provides eight independently controlled switch positions, allowing several parameters to be configured on the same PCB.

The compact form factor makes the switch suitable for integration into development boards, industrial control equipment, instrumentation, automation modules, and other electronic devices. Its manual ON/OFF operation provides a simple and reliable method for changing circuit configuration during development, testing, installation, or maintenance.

The DIP Switch 8-Way – Long Leg is particularly useful for electronics engineers, technicians, students, and makers working with through-hole PCB designs and embedded hardware. It can be installed directly on a PCB and used as a physical interface for selecting predefined operating configurations.

Features

• 8 independent ON/OFF switch positions

• Long-leg terminal design

• Through-hole PCB mounting

• Compact DIP switch construction

• Suitable for circuit configuration

• Useful for address and mode selection

• Easy manual ON/OFF operation

• Suitable for prototypes and electronic equipment

Specifications

Applications

• Development boards

• Embedded systems

• Electronic prototypes

• Microcontroller projects

• Address configuration

• Mode selection

• Industrial control boards

• Automation equipment

• Communication modules

• PCB-based electronic devices
