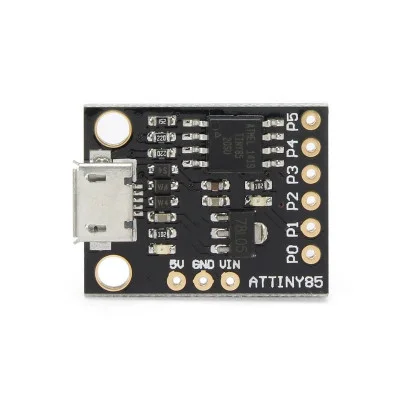

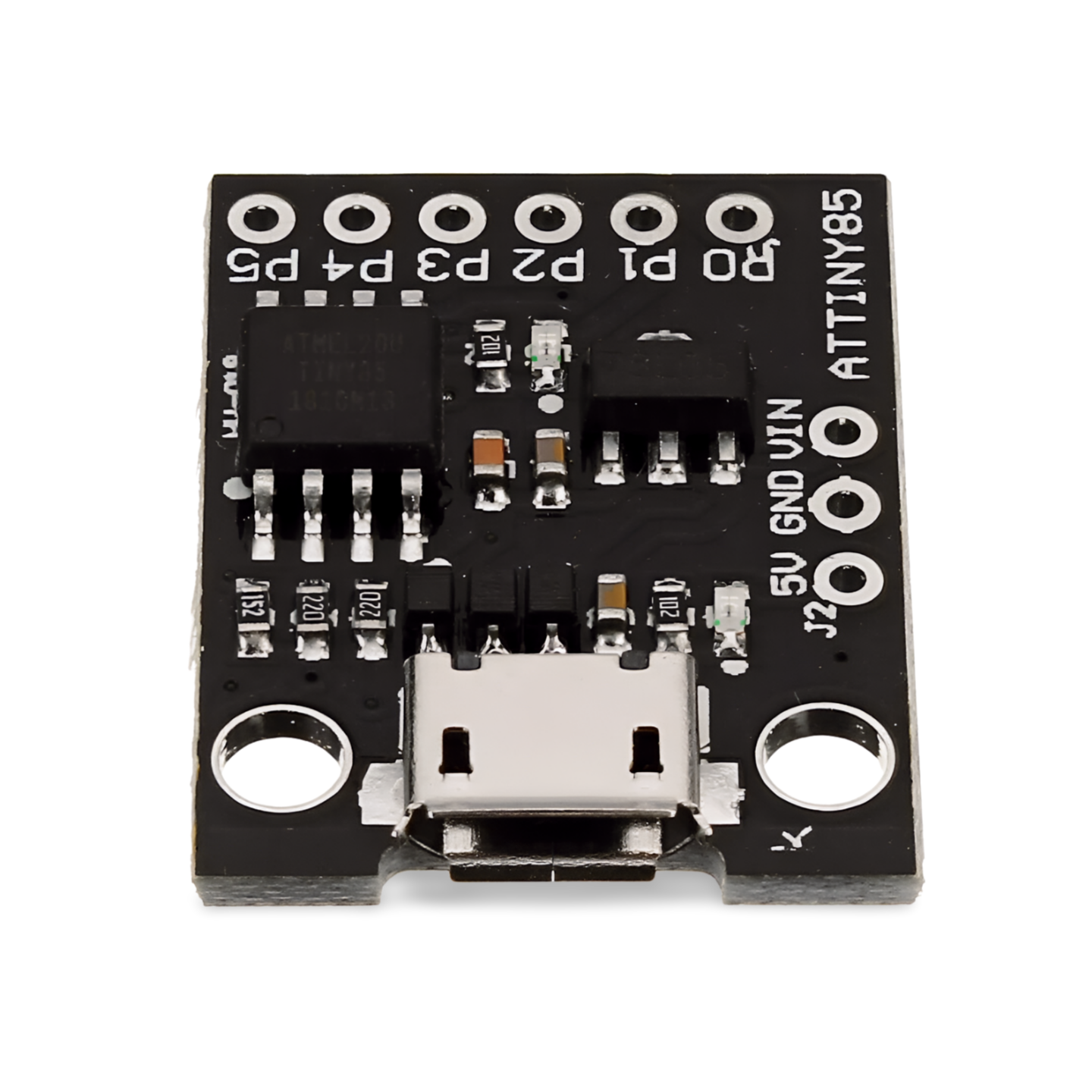

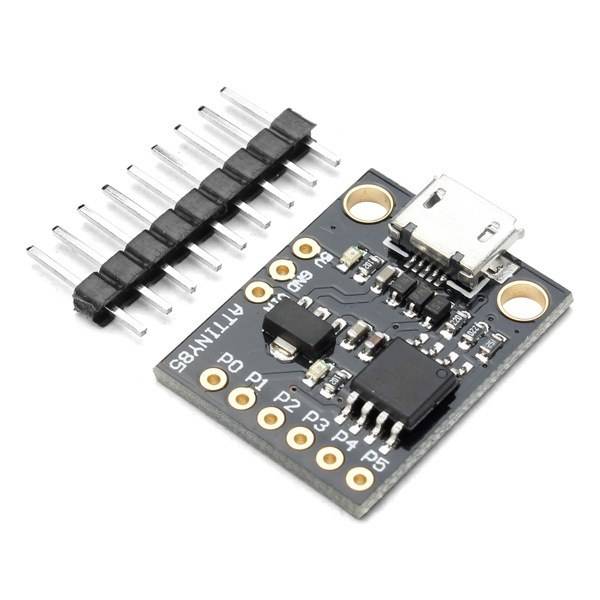

Mini ATTinY85 Micro USB Development Board

Electra Store SKU: DB-26616

200.00 EGP

In Stock

Quantity

Share to

Overview

The Mini ATtiny85 Micro USB Development Board is a super-small, low-cost microcontroller board based on the ATtiny85 chip, designed for compact DIY projects, wearables, and USB-powered gadgets. With built-in Micro USB support, it eliminates the need for an external programmer, making it perfect for quick prototyping and educational use.

Description

Attiny85 Arduino Micro Development Board

The ATtiny85 based mini development board is similar to the Arduino, but cheaper and smaller (of course a bit less powerful). Through the whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.

Microcontroller:	ATtiny85
Operating Voltage:	5 V
Input Voltage:	5 - 12 V
Digital I/O Pins:	6 (of which 2 are used for USB)
PWM Pins:	3
Analog Input Pins:	4
DC Current per I/O Pin:	40 mA
Flash Memory:	8 KB (of which about 2 KB are used by bootloader)
LEDs	2, Power and Status LEDs
Dimensions:	21 mm x 14 mm

Features:

Support for the Arduino IDE 1.0 (OSX/Win/Linux).
8KB program memory (~2KB is used by bootloader)
512 byte EEPROM
512 byte SRAM
Internal USB support
6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
I2C and SPI (via USI)
Power LED and Test/Status LED
Power via USB or External Source - 5v or 7-16v (automatic selection)
On-board 150ma 5V Regulator
Low-power consumption
