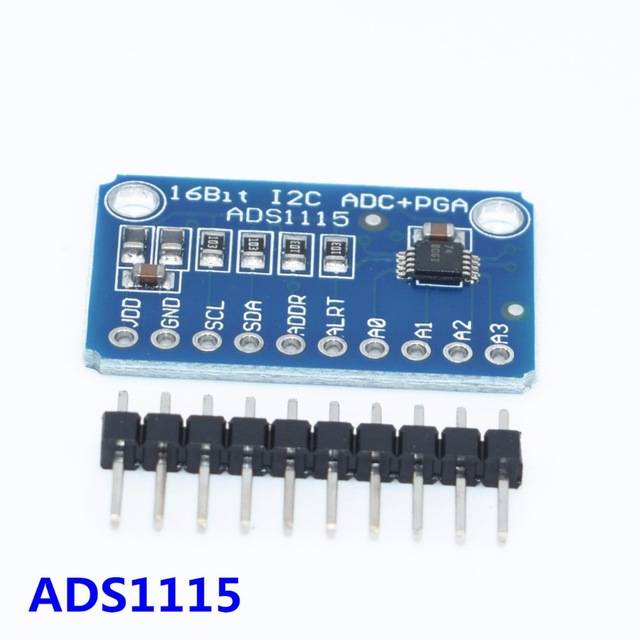

ADS1115 16-Bit ADC - 4 Channel with Programmable Gain Amplifier

ADS1115 16-Bit ADC - 4 Channel with Programmable Gain Amplifier

Electra Store SKU: MD-26611
95.00 EGP

Out of Stock

Share to

Categories: Other Modules

Overview

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter.

Description

  • Wide Supply Range: 2.0V to 5.5V
  • Low Current Consumption: Continuous Mode: Only 150µA
  • Single-Shot Mode: Auto Shut-Down
  • Programmable Data Rate: 8SPS to 860SPS
  • Internal Low-Drift Voltage Reference
  • Internal Oscillator
  • Internal PGA
  • I2C Interface: Pin-Selectable Addresses
  • Four Single-Ended or Two Differential Inputs
  • Programmable Compactor
  • This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers
Package Included:
  • 1  X  ADS1115 16-Bit ADC - 4 Channel with Programmable Gain Amplifier
