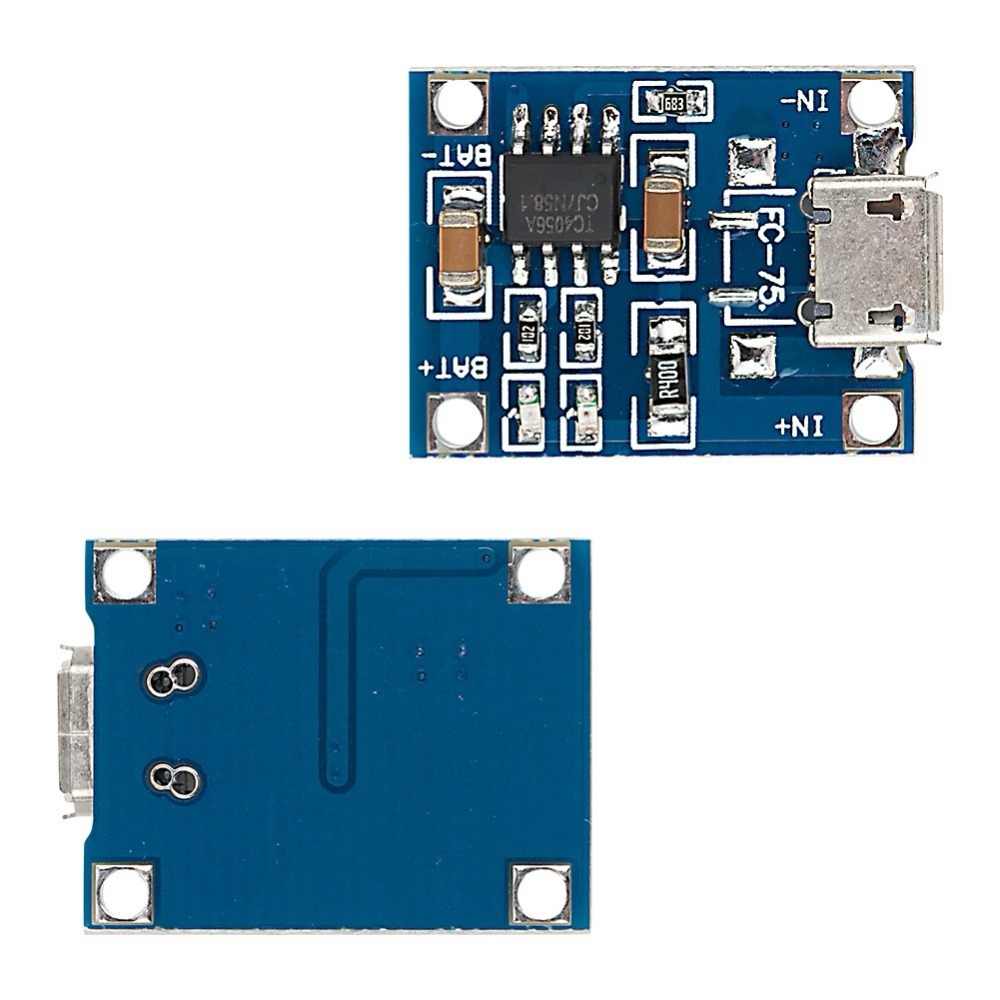

5V 1A TP4056 Lithium Battery Charging Module – Micro USB

Electra Store SKU: CH-26646

30.00 EGP

Out of Stock

Share to

Categories: Chargers

Overview

Input with MICRO USB female seat can be directly input to do with the phone charger lithium battery charging, And still retains the input voltage wiring pads, it can be very convenient to DIY

Description

Input voltage: 5V
Charging cut-off voltage: 4.2V ± 1%
maximum charge current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery over-current protection current: 3A

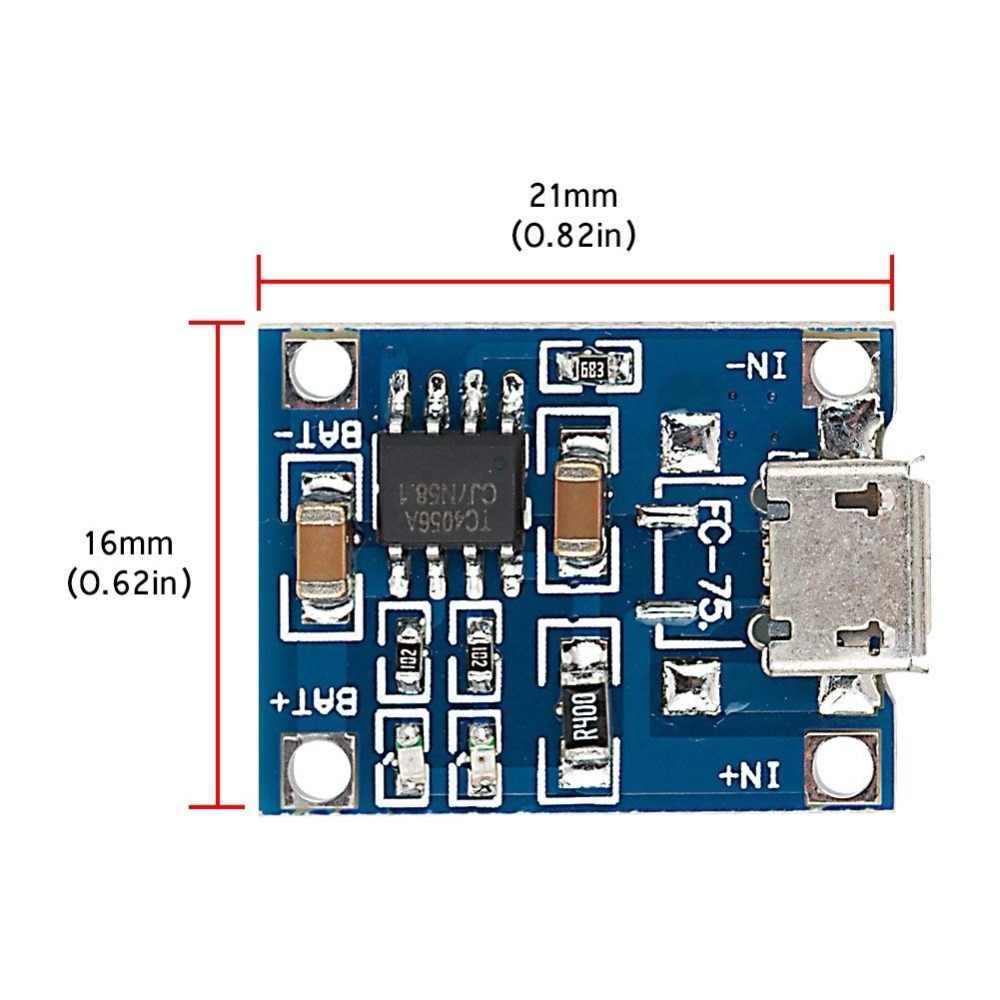

Board size: 2.1 * 1.7CM
Note that the charger must be able to output 1A or more when using a mobile phone charger do enter, or may not charge
Lithium battery operating voltage: 3.6V ~4.2V

Applicable for:

3.6V (3.6V * 1S) lithium battery & packs
3.7V (3.7V * 1S) lithium battery & packs
4.2V (4.2V * 1S) lithium battery & packs
Cylindrical Lithium battery (Li-ion)

Parameters:

Maximum protection voltage: 4.255V ± 0.05V
Minimum protection voltage: 2.35V ± 0.05V
Maximum operating current: 2A

Protections:

Short circuit protection
Overcharge protection
Over-discharge protection
Over-current protection

Interface Definition:

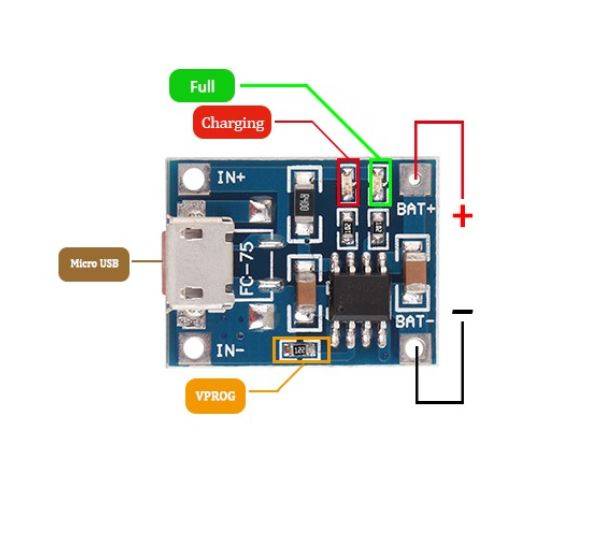

B : Battery Positive ( )
B- : Battery Negative (-)

Note:

Ampere meter can only be connected to 5v input end of the module.
It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
The connection wire should not be too thick.
Make sure the connect point is good.
If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subs tract the charging current to avoid burn damage to chip.
NO Reveal polarity.
