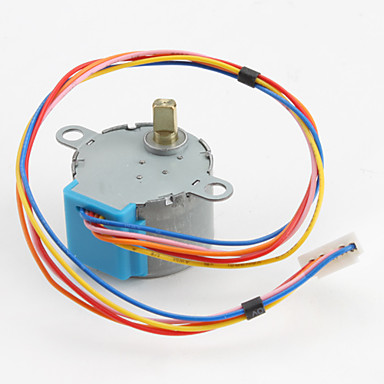

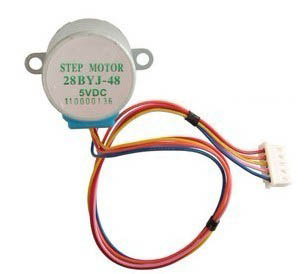

28BYJ-48 Stepper Motor 5VDC
Electra Store
SKU: MO-22656
75.00 EGP
Out of Stock
Categories: Stepper Motors
Overview
Mainly used in Air Conditioner Louver , Small Cooling/Heating Fan etc.
Description
Description
- Rated Voltage: 5VDC
- Number of Pole: 4
- Speed Variation Ratio :1/64
- Stride Angle: 5.625° /64
- DC resistance: 200Ω±7%(25℃)
- Idle In-traction Frequency: >600Hz
- Idle Out-traction Frequency: >1000Hz
- In-traction Torque:>34.3mN.m(120Hz)
- Self-positioning Tor: >34.3mN.m
- Insulated resistance: >10MΩ(500V)
- Insulated electricity power: 600VAC/1mA/1s
- Insulation grade: A
- Rise in Temperature: <40K(120Hz)
- Noise: <40dB(120Hz,No load,10cm)
