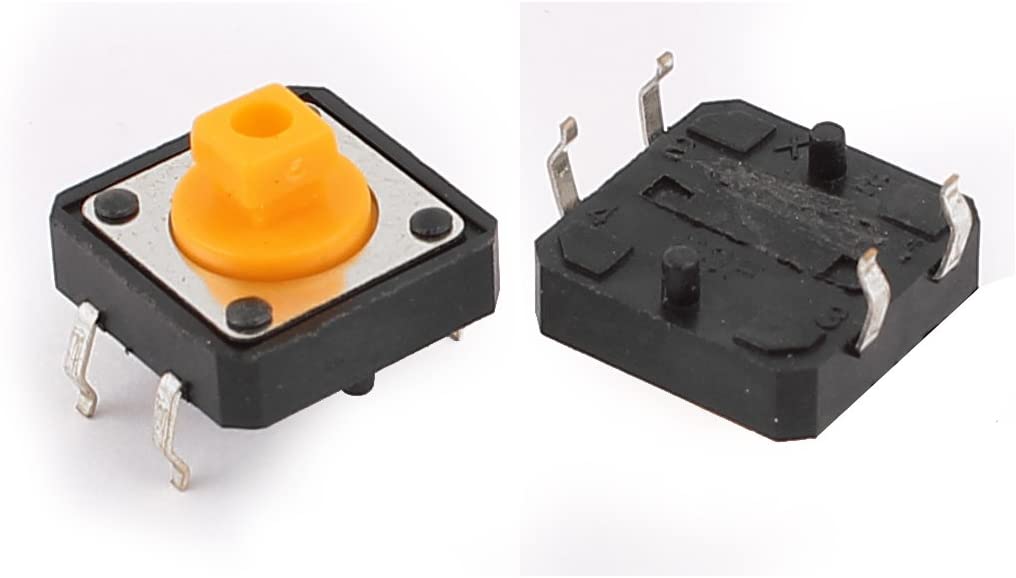

Key Specifications:

• Type: SPST (Single Pole Single Throw) Momentary (NO - Normally Open)

• Dimensions: 12mm x 12mm x 8mm (LxWxH)

• Termination: 4 solder pins (2 pairs for stable mounting)

• Actuation Force: Medium tactile feedback (typical ~160-250gf)

• Electrical Rating: 50mA @ 12VDC (low current signal applications)

• Material: Plastic/POM housing with metal plunger

• Color Options: Black/White/Red actuator (default black)

Features & Benefits:

✔ Space-Saving Design - Fits in tight PCB layouts or small enclosures ✔ Positive Tactile Click - Clear user feedback with each press ✔ 4-Pin Stability - Secure PCB mounting with dual contact points ✔ Durable Construction - Rated for 50,000+ mechanical cycles ✔ Low Profile - Just 8mm height for slim applications

Typical Applications:

• Electronics prototypes & breadboards

• Arduino/Raspberry Pi projects

• Control panels & instrumentation

• Automotive electronics

• Appliance controls

• Security system keypads

Installation Notes:

• PCB mount with 2.54mm (0.1") standard pin spacing

• Pins can be clipped for SMD reflow soldering

• Compatible with 12V systems (not for high-power loads)

Package Includes: 1x Micro Push Button Switch (additional quantities available)
